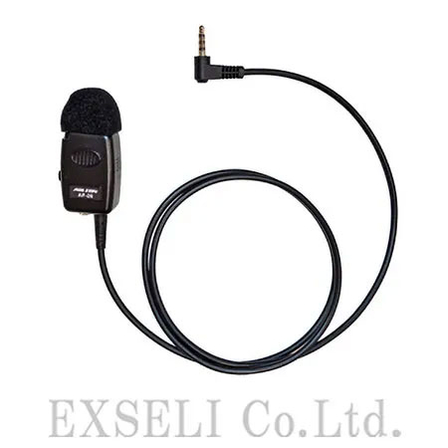

Tie-pin type PTT microphone for smartphones [AN-26]
Your smartphone instantly becomes a walkie-talkie! Enjoy comfortable operation for conversations and music with a multifunction PTT microphone!
The AN-26 (AN26) is a tie-pin type PTT microphone designed specifically for smartphones, manufactured by F.R.C. Since it is just the microphone, please use it in combination with separately sold φ2.5mm earphones. The recommended earphones from the manufacturer are as follows: - Inner type earphone FEP-201 - Ear hook earphone FEP-202 - Canal type earphone FEP-203 - D-type hook earphone FEP-204 - Ear pad hook type earphone FEP-205 - Ear hook speaker type earphone FEP-206 You can use it with a smartphone equipped with a φ3.5mm phone plug and installed with transceiver apps like LINE WORKS. There is a clip on the back of the tie-pin microphone. Pressing the PTT button briefly starts transmission, and pressing it again briefly returns to reception. When a call comes in, pressing the PTT button answers the call, allowing for simultaneous conversation. Pressing it again ends the call. The PTT button can also be used to control music apps, such as play/pause with a short press and skipping tracks with a double press. For more details, please feel free to contact us.
basic information
● Please note that the device may not operate depending on the specifications of the smartphone, the app, and the version of the Android OS. ● If you have a smartphone case, please be aware that the pin jack may not fit all the way in. ● Specifications ・Dimensions: Under investigation ・Cable length: 950mm (from jack to clip-type microphone) ・Weight: Under investigation ・Connector shape: φ3.5mm 1pin L-shaped plug ・Operating temperature: -10 to +50℃ ・Microphone: Condenser microphone φ6 × 5mm ・Microphone sensitivity: -54±3dB ・Microphone impedance: 2.2kΩ ・Earphone plug: φ2.5mm ● There are also the following F.R.C manufactured smartphone-compatible earphone microphones: ・Smartphone dedicated ear-hook type earphone microphone AN-23 ・Smartphone dedicated canal type earphone microphone AN-24 ・Smartphone dedicated battery-powered tie-clip type PTT microphone AP-26 *For more details, please feel free to contact us.
Price information
Manufacturer's price: Open price We aim to sell at a lower price than anywhere else. Please contact us for our selling price.
Delivery Time
Model number/Brand name
AN-26 F.R.C (F.R.C)
Applications/Examples of results
【Examples of Use】 ■Event management and venue administration ■Security and safety services ■Construction and work sites ■Transportation and logistics ■Food and hospitality industry ■Medical and caregiving ■Tourism and leisure industry, etc.
