[AN-24] High Noise Isolation Canal-Type Earphone Microphone - Smartphone Compatible
Smartphone transceiver calls and music control! Excellent noise-isolating canal-type earphone microphone!

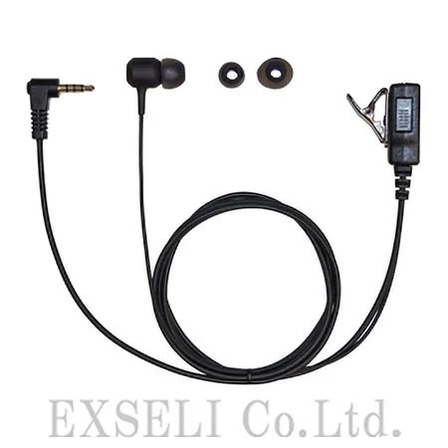

The AN-24 (AN24) is a canal-type earphone microphone specifically designed for smartphones, manufactured by F.R.C. It is compatible with smartphones equipped with a φ3.5mm phone plug and can be used with transceiver apps like LINE WORKS installed on your smartphone. The canal type that fits inside the ear provides high sound insulation and a structure that is less likely to fall out of the ear. There is a clip on the back of the tie-pin microphone. A short press of the PTT button starts transmission, and pressing it again returns to reception. When a call comes in, pressing the PTT button answers the call, allowing for simultaneous conversation. Pressing it again ends the call. The PTT button can also be used to control music apps, for example: short press for play/pause, double press to skip tracks. *For more details, please feel free to contact us.
basic information
● Please note that the device may not function properly depending on the specifications of the smartphone, the app, and the version of the Android OS. ● If you have a smartphone case, please be aware that the pin jack may not fit all the way in easily. ● Specifications ・Dimensions: Under investigation ・Cable length: Jack to clip-type microphone: 920mm Microphone to earphones: 470mm ・Weight: Under investigation ・Connector shape: φ3.5mm 1pin L-shaped plug ・Operating temperature: -10 to +50℃ ・Microphone: Condenser microphone φ6 × 5mm ・Microphone sensitivity: -54±3dB ・Microphone impedance: 2.2kΩ ・Speaker diameter: φ15mm ・Rated output: 30mW ・Impedance: 32Ω ・Earphone plug: φ2.5mm ● There are also the following F.R.C manufactured smartphone-compatible earphone microphones available: ・Smartphone-specific earhook-type earphone microphone AN-23 ・Smartphone-specific earhook-type earphone microphone AN-26 ・Smartphone-specific battery-powered tie-clip type PTT microphone AP-26 *For more details, please feel free to contact us.
Price information
Manufacturer's price: Open price We aim to sell at a lower price than anywhere else. Please contact us for our selling price.
Delivery Time
Model number/Brand name
AN-24 F.R.C.
Applications/Examples of results
【Examples of Use】 ■Event management companies ■Security industry ■Logistics and delivery industry ■Restaurants and service industry ■Construction industry and on-site work ■Hotels and tourism industry ■Medical and nursing facilities ■Educational institutions and school events, etc.
