[Catalog Revision] Pigeon House Modularized 'Hatokotto'
[Catalog Revision] Achieving labor-saving by modularizing pigeon coops! Contributing to significant shortening of construction time, smooth workability, and reduction of rooftop load weight.

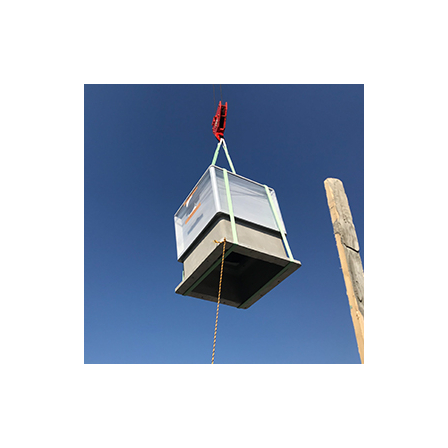

"Hato Kotto" is a product that has been modularized from the commonly known "pigeon coop" of the rooftop slab penetration. The construction of the pigeon coop requires many processes such as marking, formwork, rebar installation, concrete pouring, formwork removal, waterproofing, and mortar finishing after the rooftop slab is poured. However, by modularizing the pigeon coop, complicated construction can be omitted, and since there is no need for a curing period, work on rooftop waterproofing and plumbing can begin immediately after installation. Additionally, the weight of the pigeon coop can be confirmed, making the calculation of the rooftop load clearer. For over 35 years since its release, it has been widely used not only in new constructions but also in renovations and upgrades of air conditioning systems, being adopted in more than 15,000 sites. 【Features】 - Significant reduction in construction time - Prevention of falls and rainwater intrusion during construction - Easy maintenance for inspection, repair, and manufacturing - Suitable for renovations and expansions of equipment requiring rooftop slab penetration - Made of FRC material, it has excellent freeze-thaw resistance, durability, and strength, with low absorption and lightweight properties.
basic information
Examples of corresponding locations: apartment buildings, office buildings, hospitals, nursing homes, school facilities, commercial buildings, hotels, etc.
Price information
Please contact us.
Price range
P3
Delivery Time
OTHER
Applications/Examples of results
For over 35 years since its launch, we have a proven track record in various applications such as residential buildings, office buildings, schools, and hospitals, and have been adopted in more than 15,000 sites, ranging from new construction to renovation projects.
Line up（7）
| Model number | overview |
|---|---|
| Ｐ－Ｏ | Dimensions: W670 × D670 × H716 |
| Ｐ－Ｉ | Dimensions: W670 × D920 × H716 |
| Ｐ－II | Dimensions: W670 × D1220 × H716 |
| Ｖ－Ｉ | Dimensions: W980 × D980 × H716 |
| Ｖ－II | Dimensions: W1280 × D1280 × H716 |
| ＶＷ－II (S) | Dimensions: W1350 × D1280 × H999 |
| ＶＷ－II (W) | Dimensions: W1420 × D1280 × H999 |
catalog（1）
Download All Catalogs
CAD data（12）
| Model number | overview | File |
|---|---|---|
| P-0 type | Hatokotto P-0 Type CAD Data |
|
| P-1 type | Hatokotto P-1 Type CAD Data |
|
| P-2 type | Hatokotto P-2 Type CAD Data |
|
| PH-0 type | Hatokotto PH-0 Type CAD Data |
|
| PH-1 type | Hatokotto PH-1 Type CAD Data |
|
| PH-2 type | Cousin Cot P H-2 Type CAD Data |
|
| V-1 type | HatoCott V-1 Type CAD Data |
|
| V-2 type | HatoCotto V-2 Type CAD Data |
|
| VH-1 type | Hatokotto VH-1 Type CAD Data |
|
| VH-2 type | HatoCot VH-2 Type CAD Data |
|
| VW-2 (S) type | Cousin Cot VW-2 (S) type CAD data |
|
| VW-2 (W) type | Hato Kotto VW-2(W) Type CAD Data |
|
Distributors
GS Corporation has been walking through the Showa, Heisei, and Reiwa eras for over 50 years as a position of "creation," continuously honing our skills and developing and promoting new products that contribute to the global environment and living conditions. We provide technologies such as SI-type pigeon loft unit technology to improve construction productivity, specialized drainage joint technology for high-rise residential buildings, inspection technology to assess the long-term quality of housing, and next-generation drainage system technology for utilizing stock buildings, thereby creating new added value that meets the needs of the times for many years. Amid the diversifying changes of the era, we aim to leverage the long-standing achievements that GS Corporation has built up as a foundation to develop and promote equipment parts utilizing i-construction technology, taking a new step toward the next era.
