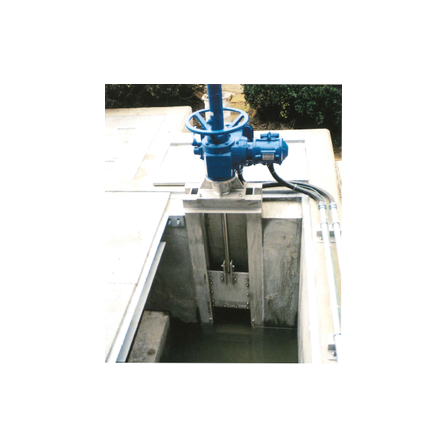

Emergency shut-off sluice gate for preventing abnormal water discharge from electric power companies and related companies.
An electric sluice gate that continuously monitors abnormal water and automatically closes to prevent the outflow of abnormal water using a monitoring system with pH meters, oil film detectors, turbidity meters, etc.
In electric power companies and related companies, oil spills can lead to serious environmental accidents, so measures to prevent external discharges are required. This system monitors 24 hours a day using oil film detectors, and when an oil film is detected, the electric sluice gate automatically closes the waterway. With high sealing performance, it prevents external discharges. Utilizing design know-how accumulated from years of implementation, we keep costs down and build individually optimized blocking systems. Custom-made solutions, high durability structures, and automatic monitoring control are standard features. 【Features】 - Suppresses abnormal oil film discharges - Automatically closes drainage outlets - Custom-designed according to equipment and liquid properties - Extensive delivery track record *We also offer a variety of sluice gate lineups tailored to different applications! For more details, please refer to the catalog or feel free to contact us.
basic information
【Specifications】 ■ Type: Stainless steel or steel sluice gate ■ Opening dimensions: 100×100 to 2000×2000 mm ■ Design water depth: Designed as per request ■ Operating water depth: Designed as per request ■ Water-tight method: Three-way or four-way rubber water-tight type - Can stop water even at low water pressure using a tapered block ■ Opening and closing mechanism: Electric (rack type or spindle type) ■ Control method: Designed as per request - Interlocking with pH meter, oil level meter, rain gauge, etc. for cutoff operation via sensor signals - Control via remote operation - Manual operation on-site, etc. ■ Cutoff time: 300 mm/min (standard) 【Kanae Interesting Course】⇒ https://www.kanae.co.jp/about/gate.html ⇒ 'Technology for Preventing the Leakage of Harmful Substances' *For more details, please refer to the catalog or feel free to contact us. (Kanae: Sluice gate manufacturer)
Price information
Please contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
catalog（1）
Download All Catalogs
Distributors
Kanae Corporation has been evolving as a "comprehensive engineering company" centered around customers who support social infrastructure, including electricity, telecommunications, railways, construction, civil engineering, and environmental conservation, since its establishment in 1941 with a focus on energy. We are continuously advancing technological innovation through in-house and collaborative development to provide our customers with the most suitable products and technologies. We have named our "customer-first" corporate policy "Face-to-Face Communication," and we prioritize organic interactions with our customers above all else. Moving forward, we will continue to provide reliable products as your best partner with meticulous services. Kanae: sluice gate manufacturer.
