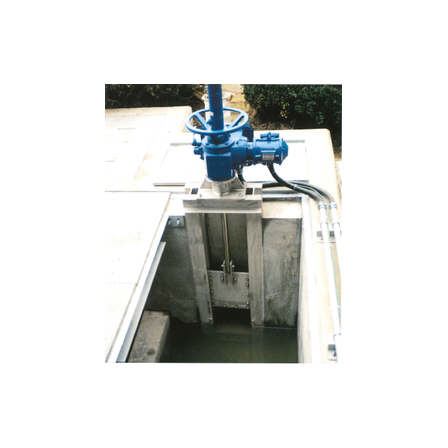

Electric shut-off sluice gate for emergency drainage stop in chemical plants.
Automatic detection of chemical leaks using pH meters, oil film detectors, turbidity meters, etc. Automatic closure of the drainage line. A sluice gate that minimizes environmental risks with high shut-off performance.
In chemical plants, the leakage of chemicals and solvents can lead to serious environmental accidents, so a high level of water-stopping performance is required. This system continuously monitors for oil films and pH abnormalities, and when a deviation from the standards is detected, it automatically activates the electric gate. It closes the drainage channel to prevent the external leakage of abnormal water. With design know-how accumulated from years of implementation, it is possible to build a customized optimal blocking system tailored to the plant structure and chemical properties. Custom-made solutions, high durability structures, and automatic monitoring and control are standard features. 【Features】 - High water-stopping performance to suppress abnormal water leakage - Safe closure of drainage outlets through automatic control - Custom design according to equipment and liquid properties - Extensive track record in chemical plants *We also offer a diverse lineup of sluice gates for various applications! For more details, please refer to the catalog or feel free to contact us.
basic information
【Specifications】 ■ Type: Stainless steel or steel sluice gate ■ Opening dimensions: 100×100 to 2000×2000mm ■ Design water depth: Designed as per request ■ Operating water depth: Designed as per request ■ Water-tight method: Three-way or four-way rubber water-tight type - Can stop water even at low water pressure using a tapered block ■ Opening and closing mechanism: Electric (rack type or spindle type) ■ Control method: Designed as per request - Interlocking with pH meter, oil level meter, rain gauge, etc. for cutoff operation based on sensor signals - Remote control - Manual operation on-site, etc. ■ Cutoff time: 300mm/min (standard) 【Kanae Interesting Course】⇒ https://www.kanae.co.jp/about/gate.html ⇒ 'Technology for Preventing the Outflow of Harmful Substances' *For more details, please refer to the catalog or feel free to contact us. (Kanae: Sluice gate manufacturer)
Price information
Please contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
catalog（1）
Download All Catalogs
Distributors
Kanae Corporation has been evolving as a "comprehensive engineering company" centered around customers who support social infrastructure, including electricity, telecommunications, railways, construction, civil engineering, and environmental conservation, since its establishment in 1941 with a focus on energy. We are continuously advancing technological innovation through in-house and collaborative development to provide our customers with the most suitable products and technologies. We have named our "customer-first" corporate policy "Face-to-Face Communication," and we prioritize organic interactions with our customers above all else. Moving forward, we will continue to provide reliable products as your best partner with meticulous services. Kanae: sluice gate manufacturer.
