Drone Equipment Transportation Support Service for Railway Infrastructure
We will efficiently support the supply of railway materials from the air.

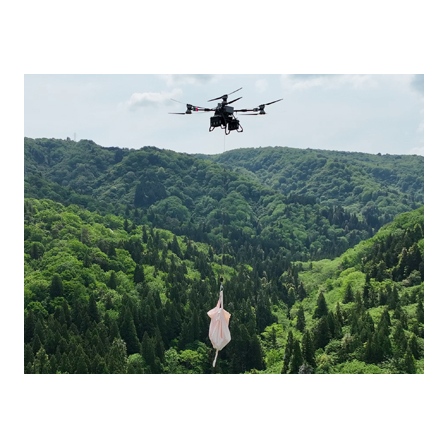

In the supply of track materials for railway infrastructure, transporting equipment to areas that are difficult for vehicles to access or where the burden on workers is significant can pose challenges. Traditional methods have raised concerns about increased worker burden, prolonged preparation times, rising costs, and safety risks. Our company utilizes large transport drones to assist in the transportation of materials and equipment at railway infrastructure sites. Through preliminary site surveys and flight route planning, we develop safe and efficient transportation plans tailored to the site conditions, enabling loading and unloading operations. 【Usage Scenarios】 - Transporting materials along the tracks - Transporting materials to areas difficult for vehicles to access - Transporting materials in steep terrain 【Benefits of Implementation】 - Reduced burden on workers - Increased efficiency of transportation operations - Improved safety
basic information
Aircraft used: DJI FlyCart 100 Maximum payload: Dual battery: 65kg, Single battery: 80kg Operational guidelines: With winch: approximately 60-65kg, Without winch: approximately 65-70kg Estimated range: Dual battery with 65kg payload: approximately 12km Operating temperature: -20℃ to 40℃ Protection rating: IP55 Maximum wind speed: 12m/s Transport method: Hook transport, Winch transport Main target objects: Insulators, fittings, tools, repair materials, temporary materials, felled timber, and other construction materials Main target sites: Transmission towers, power plants, dams, mountainous areas, river areas, steep slopes, areas difficult for vehicles to access Preparation: On-site investigation, surveying, flight route setting, coordination with stakeholders, application responses as needed Recommended preparation period: Consultation is recommended about one month in advance.
Price range
Delivery Time
Applications/Examples of results
"Transportation of Materials and Equipment for Aging Deterioration Countermeasures at Mountainous Transmission Towers" In the aging deterioration countermeasure work for transmission towers located in mountainous areas, materials and equipment such as insulators, fittings, and tools were transported using drones. This project involved multiple towers, with a total transport weight exceeding 10 tons. With an average operating time of 5 hours per day, approximately 2.0 tons were transported, and by combining the simultaneous operation of two drones, which is not commonly adopted in other industries, we were able to shorten the construction period. After the lifting was completed, we also utilized the same method for the unloading and transportation after the construction, successfully completing the drone transportation service.
