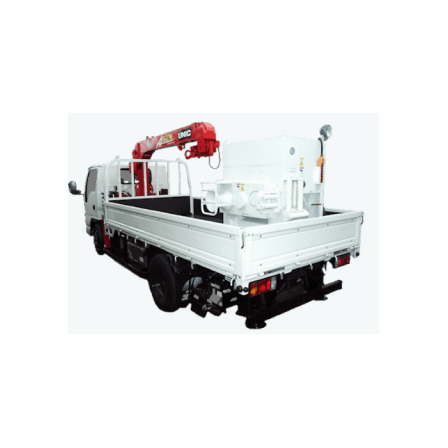

Cable Removal Machine Detachable Transport Vehicle "KS3"
No loading work is required, allowing for efficient and speedy operations! Custom machinery focused on cable removal.
During the removal of communication cables and similar items, the lifting and cutting operations are performed automatically. Since the removal machine is set at the rear of the truck, the cut cables fall to the back of the cargo area, eliminating the need for loading work. This allows for efficient and speedy operations, reducing the labor, personnel, and time required for workers. You can choose to fix the cable removal machine (KSR-75) to the vehicle or opt for a detachable version. By making it detachable, the main unit can be used as a truck when removed. *We offer vehicles in both unic type and small trucks (with PTO), allowing you to choose according to your needs. 【Features】 ■ Automatically performs lifting and cutting operations during the removal of communication cables and similar items ■ The removal machine is set at the rear of the truck ■ No loading work is required ■ Enables efficient and speedy operations ■ Reduces labor, personnel, and time for workers *Available for online business negotiations! Please feel free to contact us.
basic information
【Specifications】 ■Overall Length: 1,130mm ■Overall Width: 1,080mm ■Overall Height: 1,220mm ■Weight: 900kg ■Winch (mainly used for pulling underground cables to the main unit) ・Maximum Pulling Force: 28kN ・Maximum Pulling Speed: 17m/min ・Wire Length: 10m ■Drive Roller (used for gripping and pulling cables) ・Maximum Pulling Force: 23kN ・Maximum Pulling Speed: 16m/min ■Cable Cutter (used for cutting cables) ・Maximum Cutting Force: 43kN ・Maximum Cutting Diameter: 75mm (negotiable) ■Control Box (links the drive roller and cutter) ・Power Supply: DC24V ・Control: Manual/Automatic switchable, remote control *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
