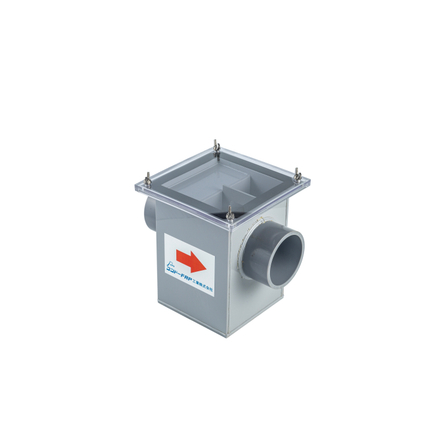

Float ball type "Large diameter drain trap"
The float ball type drain trap with many years of proven performance is compatible with large diameters of 65A, 75A, and 100A. This product is designed for installation at the end of drain pipes.
The large-diameter drain trap is available in 65A/75A/100A sizes and is designed for air conditioning units used in horizontal drainage piping at the end of the line. It features a special float ball mechanism that boasts a strong track record with A-traps and C-traps. Additionally, a transparent PVC lid is used to facilitate visual inspection, and the internal components can be easily removed for excellent maintenance. 【Features】 ■ The special float ball prevents backflow of contaminated air even when the water seal is broken. ■ It exhibits excellent odor and insect prevention effects. ■ A large-diameter drain trap that is optimal for the end side of drainage piping. ■ Equipped with a transparent PVC lid for visual inspection. ■ Internal components can be easily detached for inspection and cleaning.
basic information
【Specifications】 ■Material - Main body and internal parts: PVC - Lid: Transparent PVC - Special float ball: Polycarbonate - Butterfly bolt: SUS ■Installation method: Integrated into piping
Price range
Delivery Time
Applications/Examples of results
【Main Installation Locations】 ■ End point where drainage pipes from large facilities are consolidated Examples of large facilities: hospitals, data centers, factories, exhibition halls, etc. *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
CAD data（3）
| Model number | overview | File |
|---|---|---|
| F-P65T |
|
|
| F-P75T |
|
|
| F-P100T |
|
