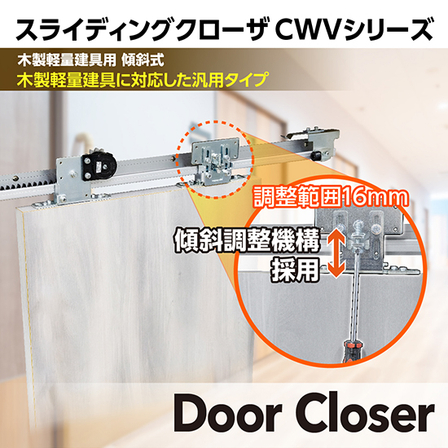

Sliding Door Closer "Sliding Closer CWV Series"
Adopts an inclination adjustment mechanism! Height can be adjusted without using height adjustment plates.
The "Sliding Closer CWV Series" is a closer specifically designed for sliding doors that opens easily with a small force and closes quietly and securely at your preferred speed. In this model change, we have adopted an inclination adjustment mechanism. We offer a set suitable for wooden and steel fixtures at a low cost. Additionally, it features easy operation that allows for both left and right-handed use. *Please note that the catalog only lists the version for wooden fixtures, but we also have a version available for steel fixtures. For more details, please feel free to contact us.
basic information
※Model Type Excerpt ●DSC-CW30V-22 Applicable door weight: 10–30kg Applicable door width: 600–1,200mm Maximum stroke: 1,500mm Closing drive method: Rail incline (3.5/300) Braking time: 7–11 seconds (at an opening distance of 900mm) Initial opening force: 2.3N (door weight 10kg), 6.1N (door weight 30kg) Durability: Over 500,000 open/close cycles ●DSC-CWKS60V-31 Applicable door weight: 30–60kg Applicable door width: 1,200–1,600mm Maximum stroke: 1,500mm Closing drive method: Rail incline (3.5/300) Braking time: 7–11 seconds (at an opening distance of 900mm) Initial opening force: 6.1N (door weight 30kg), 11.6N (door weight 60kg) Durability: Over 500,000 open/close cycles
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
