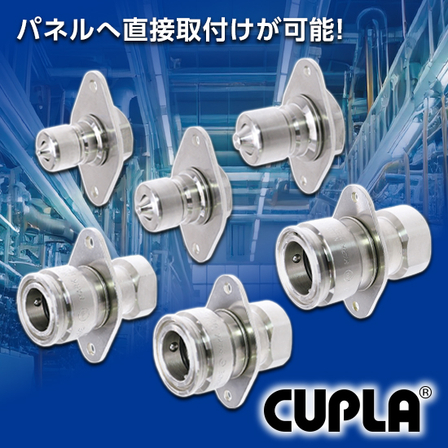

Directly mountable on the panel! "High Flow Coupler Flange Fixed Type"
Reduce work time during panel installation! Achieve improved cooling performance and installation efficiency!
The "High Flow Coupler Flange Fixed Type" is a flange-equipped quick fluid connector that can be directly mounted on equipment panels. Its large flow design enhances cooling efficiency while allowing for quick installation and maintenance on the panel. 【Features】 - Diamond-shaped flange design allows for installation in narrow spaces - Automatic opening and closing valves built into both the plug and socket - Quick connection and disconnection of cooling piping - Compact space-saving design (connection length reduced by up to 22% compared to our standard) *This product is a semi-standard item. For more details, please feel free to contact our sales representative.
basic information
【Specifications】 ■Main body material: Stainless steel (SUS304) ■Mounting screw sizes: Rc1/4, Rc3/8, Rc1/2 ■Maximum operating pressure MPa {kgf/cm²}: 1.0 {10} ■Pressure resistance MPa {kgf/cm²}: 1.5 {15} ■Seal material: EPDM (Ethylene Propylene Rubber) ■Operating temperature range: -40℃ to +150℃
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
