Automating surface grinding! Orbital sander 'APS-125-01'
Covers everything from rough grinding to finishing polishing! The double action method leaves no polishing marks.

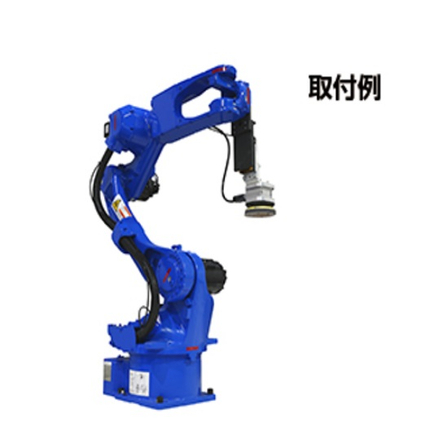

The Orbital Sander "APS-125-01" is a dual-action air sander for automatic machines and robots that can handle surface polishing of various materials such as metal, resin, and stone. It employs an intermediate pad to achieve uniform polishing of the work surface. The double-action method is used to ensure no polishing marks are left behind. 【Features】 - Secure fixation to robots using screw holes and positioning pins - Utilizes a sponge intermediate pad to follow the contours of the workpiece - Compatible with a wide range of workpieces thanks to a variety of sanding papers *For more details, please refer to the "Air Tool Series for Automatic Machines" available for download in the catalog.*
basic information
【Specifications】 Operating Pressure: 0.6MPa (6kgf/cm²) Air Consumption: 0.45m³/min No-load Rotational Speed: 11,000min⁻¹ Orbit Diameter: φ5 Paper Outer Diameter: φ125 Body Weight: 1.5kg 【Standard Accessories】 - Sanding Paper #80 and #120 Velcro: 2 pieces each - Wrench 17mm: 1 piece - Silencer: 1 piece - Coupler 20PM: 1 piece
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
