Robot-compatible! Belt sander "Belton B-20CL-01"
Deburring of 'Belton' with robots too! A 20mm wide belt is effective for deburring curved areas.

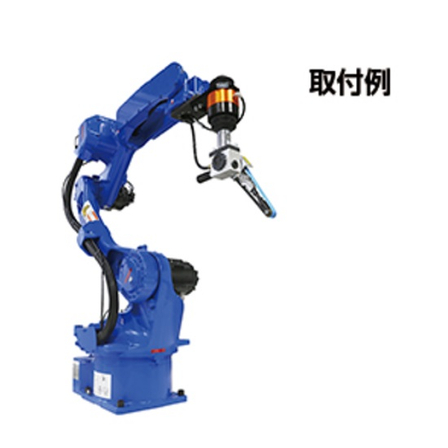

The "Belton B-20CL-01" is an air belt sander with a belt width of 20mm that can be attached to automatic machines and robots for grinding and polishing workpieces using grinding belts. It is also capable of R-surface grinding utilizing the deflection of the belt, contributing to the automation of deburring after processing aluminum castings. 【Features】 ● Ideal for deburring curved sections with a belt width of 20mm ● Supports curved surface processing with an offset bracket ● Allows for secure attachment to robots using screw holes and positioning pins ● Compatible with the air float attachment made by FINESYSTEM (mounting fixture required) *For more details, please refer to the "Air Tool Series for Automatic Machines" available for download in the catalog.
basic information
【Specifications】 Operating Pressure: 0.6MPa (6kgf/cm2) Air Consumption: 0.52 m3/min No-load Rotational Speed: 18,000 min-1 Belt Speed: 2,770 m/min Belt Dimensions: 20×520mm Main Body Weight: 1.6kg Belt Mounted on Main Body: Grinding Belt Z #60×20mm 【Standard Accessories】 Grinding Belts Z #60, #80, #100, #120×20mm: 1 each Hexagon Socket Wrench 2.5mm, 4mm: 1 each Silencer: 1 unit Coupler 20PM: 1 unit Offset Bracket 20 Ass'y (mounted on main body)
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
