Automatic machine compatible! Pneumatic die grinder 'Air Sonic L-35C-02'
Supports deburring of complex shapes! Achieves high-speed rotation with a unique air motor.

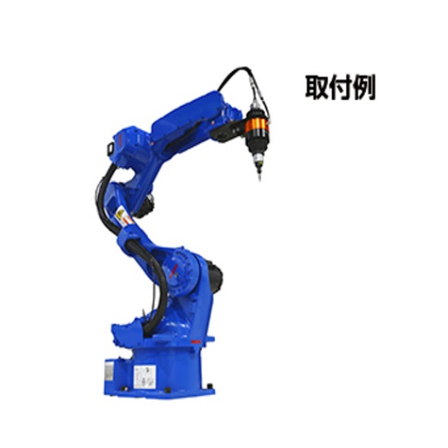

The "Air Sonic L-35C-02" is an air-powered die grinder designed for automatic machines and robot installations, using a shaft-mounted grinding stone or rotary bur for grinding. It can handle complex shapes and burrs with a φ6 axis end tool, making it suitable for grinding die-cast products. By combining it with a floating mechanism, it contributes to stable finishing. 【Features】 ● Enables smooth grinding at high speeds ● Easy to attach to robots with a body diameter of φ40 ● The end tool mounting shaft diameter is Φ6mm, compatible with various end tools ● Compatible with the air float attachment manufactured by FINESYSTEM *For more details, please refer to the "Air Tool Series for Automatic Machines" available for download in the catalog.
basic information
【Specifications】 Operating Pressure: 0.6MPa (6kgf/cm²) Air Consumption: 0.35m³/min No-Load Rotational Speed: 37,500min⁻¹ Chuck Diameter: φ6 Body Weight: 1.1kg 【Standard Accessories】 14mm Wrench: 2
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
