Lightweight & Compact Air Belt Sander "Belton D Type"
The air-operated Belton has been renewed! It now features a design that is more user-friendly for operators.

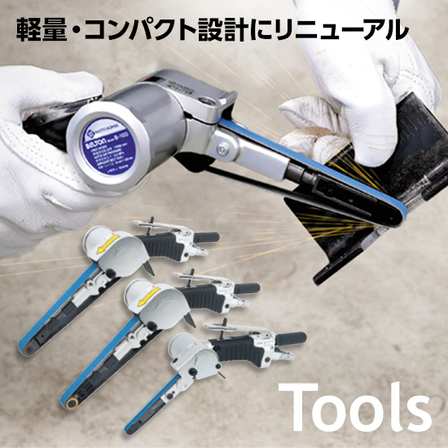

The "Belton D Type B-10D/B-20D/B-20D-A" is an air-powered belt sander. It has been renewed with a lightweight and compact design. It features an easy-to-grip lever shape that is user-friendly for operators, and it is designed with grip rubber to minimize the feeling of cold. The B-10D is effective for grinding in narrow spaces with its 10mm wide belt. The B-20D can powerfully grind over a wide area. The B-20D-A is a dual-handle type that is effective for corner grinding and similar tasks. 【Features】 - Easy belt replacement - Angle adjustment to match the working position and the shape of the workpiece - With an offset bracket (sold separately), light grinding such as contour grinding and burr removal can be performed using the elasticity of the grinding belt - Adjustable belt speed 【Standard Accessories】 Grinding belts Z (#60, #80, #100, #120): one of each Hexagonal rod wrenches (1.5mm, 4mm): one of each * The B-20D and B-20D-A come with a rounded shoe.
basic information
【Specifications】 Operating Pressure: 0.6MPa Air Consumption: 0.4m³/min No-load Rotational Speed: 17,000 rpm Belt Speed: 1,120m/min Belt Dimensions: 10×330mm (width×belt circumference) Body Weight: 0.85kg 3-axis Composite Value: ≦2.5m/s² Body Mounted Belt: Z#60
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
