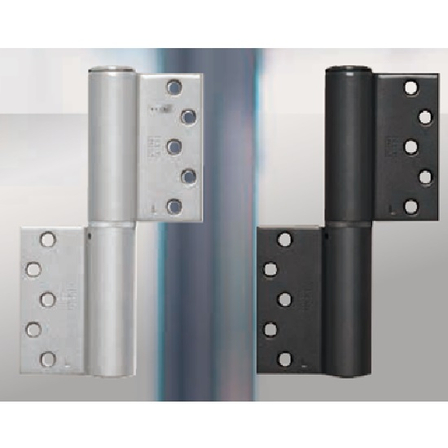

New model added to the 100 series: "Auto Hinge" hinge type 133 type.
A face-mounted type for doors with a weight of 60kg has arrived!
Coming soon! The "Auto Hinge" hinge type is a hinge that also functions as a door closer. It provides a clean finish to the appearance of the door, and its simple and beautiful design matches any door. Previously, the surface-mounted type was suitable for doors weighing up to 40kg, but a new model that accommodates doors weighing 60kg has been added. 【Features】 - For indoor use, suitable for heavy doors - Simple installation with surface-mounted type - Available in two surface colors: Silver and Black 【Standard Accessories】 - Small screws for sash M6×16L: 20 pieces - Set pin: 1 piece (Type 133) - Spring pin: 1 piece (Type 133S)
basic information
【Specifications】 ● Common to all models Applicable door size (mm): DW→900 or less, DH→2100 or less, DT→30 or more Applicable door weight (kg): 60 or less Maximum door opening angle: 180° opening to the right or left ● 133R, 133L Stop mechanism: None Stop angle: None Surface color: Silver ● 133SR, 133SL Stop mechanism: Present Stop angle: 85° and 150° Surface color: Silver ● 133R-V, 133L-V Stop mechanism: None Stop angle: None Surface color: Black ● 133SR-V, 133SL-V Stop mechanism: Present Stop angle: 85° and 150° Surface color: Black
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
