Slope protection construction method "Reinforced Frame Method"
Enhancing safety by utilizing existing retaining walls! Introducing slope protection and reinforcement methods to address changes in the ground.

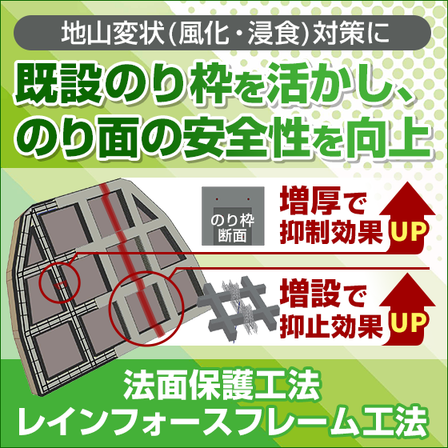

We would like to introduce a new method called the "Reinforced Frame Method" as a countermeasure against the aging of the Free Frame Method, which is one of the slope protection construction methods. Since its release in 1975, the Free Frame Method has seen the passage of time, and the need for aging countermeasures has increased. Additionally, it has become necessary to consider measures against changes in the ground, such as weathering and erosion. Therefore, when the ground deteriorates, it is essential to implement reinforcement measures to address the decrease in slope stability. This method utilizes existing frames to enhance the safety of the slopes when reinforcement is necessary. 【Features】 ■ Increased thickness for enhanced suppression effect ■ Additional installations for improved deterrent effect ■ Significant CO2 reduction effect through the reuse of existing frames We also offer "Gap Filling Material" as a filling material for the hollow space behind the frame. *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 (Thickened Type) ■Cross-sectional shape: B330×H310 ■Wire mesh specifications: Wire diameter φ2.6 / Standard ZAST300 / Material: Zinc-aluminum alloy coated iron wire ■Hoop tie (R) specifications: Wire diameter φ4.0 / Standard ZAST300(H) / Material: Zinc-aluminum alloy coated iron wire ■Effective height (reference): 245mm (D10) *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ Measures against aging of free frame construction method ■ Reinforcement measures against changes in the ground (weathering, erosion) ■ Improvement of slope stability *For more details, please download the PDF or feel free to contact us.
Detailed information
-
A passive blind is a newly conceived blind that is installed on the outside of windows. It allows for the free control of light and wind, creating a comfortable living environment!
-
External blinds are widely and commonly used in environmentally advanced countries such as Germany, Switzerland, Austria, and other parts of Europe, not only in residential buildings but also in public facilities, hospitals, and schools.
-
Low price ■Slat shape: F・R type manual type W800×H900 case 62,000 yen! ■Slat shape: F・R type electric type W1700×H1100 case 153,000 yen!
-
The passive blind offers a wide variety of options, including different slat types, drive methods, and installation methods. Please choose according to your preferences and intended use.
catalog（2）
Download All Catalogs
CAD data（4）
| Model number | overview | File |
|---|---|---|
| Thick type (1.5-1.5) |
|
|
| Thickened type (1.5-1.2) |
|
|
| Expansion type (1.5-1.5) |
|
|
| Expansion type (1.5-1.2) |
|
