Small-scale slope and embankment repair mortar spraying pump *Construction case presentation

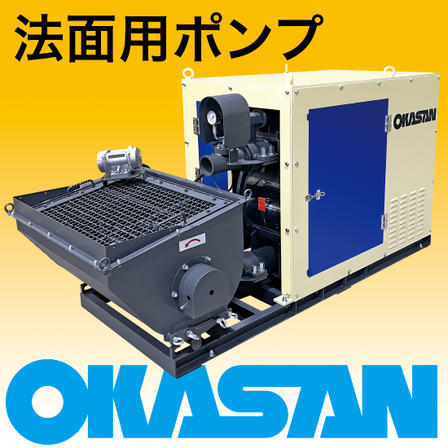

Ideal for repairing small slopes and embankments! Agitator-integrated mortar spraying pump OKG-75ME-A
Would you like to use a mortar pump to repair small-scale slopes in order to solve the following issues? 【Common Problems with Conventional Mortar Spraying Plants】 1. The road in front of the slope is narrow, making it impossible to set up the plant. 2. I want to set up the plant and close the road, but there are no alternative routes, so I cannot close it. 3. Noise and dust control measures are necessary due to the proximity to residential houses. 4. The transportation costs for bringing in and out the plant equipment are high. 5. Private slope repair work is small-scale, making it cost-prohibitive. Using fresh mortar will increase material costs, but we can expect cost reductions due to fewer pieces of equipment. We have created a collection of case studies titled "Mortar Spraying Construction Examples VOL.1," so please download and take a look. ★ It includes points of adoption, amount poured, slope height, etc. 1. Slope repair work where two-way traffic is not possible and cannot be closed. 2. Slope repair work requiring dust and noise control measures due to proximity to residential houses. 3. Slope preservation work where the road width in front is too narrow for two-way traffic. 4. All equipment is transported in and out using a single 4-ton unic truck. 5. Slope preservation work where there is no space for on-site mixing next to the railway. 6. Private slope repair work in an area densely populated with residential houses.
basic information
【Specifications】 Model: OKG-75ME-A Power Supply Voltage: Three-phase AC200V 《Pump Section》 Discharge Volume: min 9.0 to max 100.0 L/min (min 0.54 to max 6.0 m³/h) Discharge Pressure: max 2.5 MPa 《Agitator Section》 Hopper Capacity (below frame): 170 L Power: 1.5 kW-4P *For more details, please refer to the documentation. Feel free to contact us with any inquiries.
Price range
P5
Delivery Time
OTHER
Model number/Brand name
Mortar Spraying Pump OKG-75ME-A
Applications/Examples of results
For more details, please refer to the materials. Feel free to contact us as well.
Related Videos
catalog（3）
Download All Catalogs
Distributors
We are deeply embedded in the construction and civil engineering industry through the manufacturing of machines that "mix" and "deliver" various cement-based and resin-based materials, as well as the sale of related products. Primarily focusing on mixers for mixing and pumps for delivery, we develop products with a site-oriented approach, such as flow meters that enhance the reliability of on-site mixed materials and wireless remote control units that improve work efficiency. We are a specialized manufacturer of mortar mixers, grout mixers, mortar pumps, and grout pumps. Mortar pumps are also referred to as squeeze pumps or tube pumps and are utilized in injection work, pressure delivery work, and spraying work. Our sales bases are located in Tokyo, Nagoya, Osaka, and Fukuoka, while design and manufacturing are conducted at our Osaka factory. Experienced sales personnel assist customers with product selection, specification discussions, and delivery.
