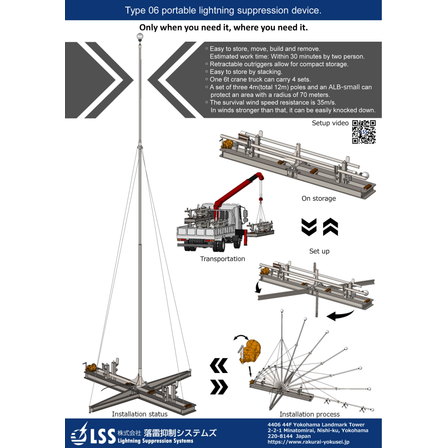

Type 06 Portable Lightning Suppression Device
![Lightning suppression, new type lightning rod [PDCE lightning ball]](https://image.www.ipros.com/public/premium/image_category/b19/1483436/IPROS258007878358067471.png?w=140&h=140){kind=small}
Only when necessary, in the necessary place. Can be compactly stored with retractable outriggers.
The "Type 06 Portable Lightning Suppression Device" is easy to store, move, erect, and dismantle, with an estimated working time of 30 minutes for two people. It can be stacked for space-saving storage, and a single 6-ton truck with a crane can transport four sets. It protects a radius of 70 meters with a set of three 12-meter poles and lightning balls. It is designed for use on concrete pavements at airports and airfields. To prevent uneven settling of the device, please solidify the ground if it is unpaved. 【Features】 - Easy to store, move, erect, and dismantle, with an estimated working time of 30 minutes for two people - Compact storage due to retractable outriggers - Can be stacked for space-saving storage - A single 6-ton truck with a crane can transport four sets - Protects a radius of 70 meters with a set of three 12-meter poles and lightning balls - Wind resistance is 35 m/s; it can be easily laid down in strong winds exceeding this speed *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■Size - When set up: H12,000mm, L4,560mm, W4,560mm - When stored: H900mm, L4,560mm, W600mm ■Weight: Approximately 960kg ■Protection range: Radius of 70m ■Used PDCE: Small lightning ball *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
Not only PDCE. you may put TV cameras as well. Then you can monitor intrusion by suspicious person from 12m High position For more details, please download the PDF or feel free to contact us.
