Aluminum High Insulation Dreykip Window AWS 90 BS.SI+
Achieves an insulation grade of H-8 and a maximum opening height of H2.7m. Dreh-Kipp window "Schüco AWS 90 BS.SI+"
This is a new window system proposed by the German system supplier Schüco Japan, which balances insulation grade "H-8" with high design quality. 【Features】 ■ Highest insulation performance in Japan Achieves insulation grade "H-8" (thermal transmittance 1.0 W/m²·K *) through Schüco's unique thermal break structure. Contributes to improving the energy efficiency of buildings. * For triple glazing with Ug value of 0.6, size W1,230×H1,480mm. ■ Flat design with "hidden frame" Adopts a "block system" where the frame is not visible from the outside. Allows for a clean facade design that maintains a sense of unity even when placed alongside fixed windows. ■ Large openings up to 2.7m Accommodates sizes W1,700mm×H2,700mm and sash weights up to 160kg for tilt-and-turn windows. Achieves dynamic openings that reach from floor to ceiling. ■ 2-way opening and closing function Allows switching between "inward opening (for cleaning)" and "inward tilting (for ventilation)" with a single handle. ■ Environmentally friendly materials Uses low-carbon aluminum profiles and has obtained the international environmental certification "Cradle to Cradle" Silver.
basic information
Wind pressure resistance S-5 (2,400Pa) Water tightness 1,000Pa Air tightness A-4 Thermal insulation H-8 (1.0 W/m²·K) *1 Maximum weight of the sliding panel 160kg (drape kip/open inward), 300kg (FIX) Size Width (W) 570–1,700mm, Height (H) 570–2,700mm (for panel weight under 130kg), 780–2,700mm (for panel weight under 160kg) Compatible glass thickness 28mm–47mm (drape kip), 32mm–47mm (FIX) Opening and closing force Initial movement/intermediate 50N or less (open inward), fully closed ↔ fully open 100N or less (tilt inward) *2 *1: The thermal insulation performance value is based on triple glazing with a Ug value of 0.6, for W1,230mm × H1,480mm. *2: Actual test results (panel size W1,422mm × H2,622mm, panel weight 157kg).
Price information
Please contact us for the price.
Delivery Time
Model number/Brand name
Schüco AWS 90 BS.SI+
Applications/Examples of results

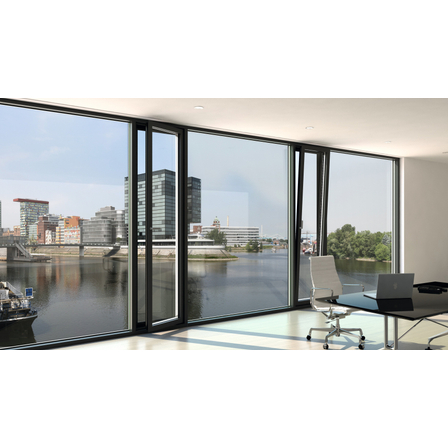

【Usage】 It is suitable for architectural projects that require high thermal insulation and design quality. - Office buildings, commercial facilities - Luxury residences, hotels - Public facilities, educational institutions, etc. In particular, it is suitable for areas where it is desired to eliminate visual differences with fixed windows while ensuring natural ventilation functions, especially in glass curtain walls and continuous windows. 【Key Points of Proposal】 ■ Contribution to Carbon Neutrality Developed under stringent European environmental performance standards, it contributes to optimizing energy efficiency in buildings aiming for ZEB and LEED certification. It demonstrates strength in proposals to clients (investors) who prioritize sustainability. ■ Fusion of Design and Function The "hidden frame" structure allows for the addition of ventilation functions without compromising the exterior design. Additionally, it supports smooth operability with robust German hardware and creates open spaces through large openings.
Detailed information
catalog（1）
Download All Catalogs
Distributors
Our company, as the Japanese subsidiary of Schueco International headquartered in Germany, provides, sells, and offers customized proposals for high-insulation aluminum windows, aluminum curtain walls, and other products that meet the stringent architectural requirements of various European countries. The characteristics of Schueco's aluminum products are based on "high thermal insulation performance," "aesthetic design," and "environmental consideration." [Thermal Insulation Performance] The windows and curtain walls that meet Europe's strict architectural requirements boast a thermal transmittance rate that significantly exceeds the energy-saving standards for openings in residential and commercial buildings. [Aesthetic Design] Despite having a maximum sash size of 3.5m x 3.2m for large openings, the slim frames and profiles provide a sophisticated design without obstructing the view. [Environmental Consideration] With high thermal insulation performance leading to excellent energy efficiency, energy savings are achieved. Furthermore, many products are certified as fully recyclable designs. In the 1980s, Schueco was the first to introduce inward-opening and tilt-and-turn windows, as well as large sliding door-type windows "Hebe-Schiebe," to the Japanese market. We will continue to contribute to the creation of sustainable and comfortable environments in Japanese architecture through the provision of innovative products.
