Large opening sash <for strong winds, high-rise, resort areas>
Even in areas with strong winds and high water tightness requirements, which are difficult to accommodate with standard large opening sashes, a slim design with a 37mm meeting rail achieves large openings without sacrificing the view!

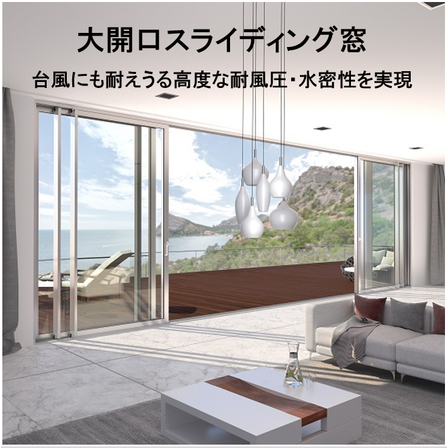

The "AS 39 SC.HP" is a large opening sash that removes the boundaries between indoor and outdoor spaces, creating an overwhelming panoramic window. It is equipped with a maximum wind pressure resistance of 5,200Pa and water tightness of 1,000Pa, making it suitable for resort sashes and high-rise windows in areas like Okinawa, where typhoon measures are necessary. We recommend it to developers and design offices involved in the development of resort hotels, villas, and high-rise condominiums in regions prone to strong winds, such as coastal areas. 【Features】 ■ Ultra-large opening and slim design ■ Highest level of wind pressure resistance and water tightness ■ "Corner separation" with no remaining columns ■ Low-carbon aluminum profiles "PremiAL" *For more details, please download the PDF or feel free to contact us.
basic information
【Basic Performance and Specifications】 ■ Wind pressure resistance: Maximum 5,200Pa (S-7 3,600Pa to maximum 5,200Pa) ■ Water tightness: W-5 (500Pa), 1,000Pa ■ Air tightness: A-4 ■ Compatible glass thickness: 3mm to 28mm ■ Maximum size of shoji: Width 2,500mm × Height 3,500mm ■ Maximum weight of shoji: 300kg ■ Opening and closing force: Initial 75N, intermediate 60N or less (※ Based on unique product standards considering large opening sashes) ■ Variations: Supports a wide range of track and opening types including 2 to 5 rail, single sliding, double sliding, and corner sliding. ※ For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ Resort hotels and villas in strong wind areas such as Okinawa and coastal regions ■ Developers and architectural firms involved in high-rise condominium development *For more details, please download the PDF or feel free to contact us.
