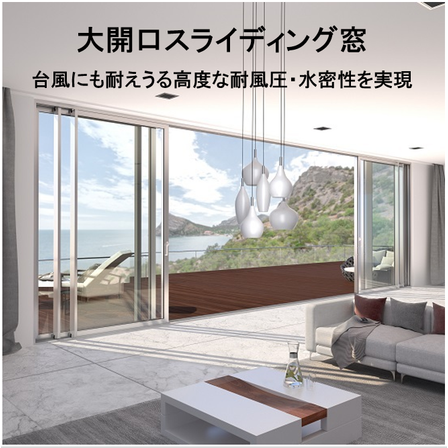

Open corner opening <by using movable sliding doors, no pillars remain in the corner>
While maintaining wind pressure resistance of 3,600 Pa and water tightness of 750 Pa, it features a design with fully open corners that cannot be achieved with standard types!
The "AS 39 SC.HP Corner Type" is a corner opening that removes the boundaries between indoor and outdoor spaces, creating an overwhelming panoramic view. It features corner windows that achieve large openings at the outer corners, allowing for a free spatial design like a corner room without any columns, even when the windows are fully opened. By using corner sashes, it achieves a high level of openness and security. This is ideal for design firms that want to promote open corner spaces, including resort hotel lounges and guest rooms, as well as luxury homes and villas on corner lots. 【Features】 ■ Ultra-large openings and slim design ■ Top-level wind pressure resistance and water tightness ■ "Corner sliding" with no remaining columns ■ Low-carbon aluminum profiles "PremiAL" *For more details, please download the PDF or feel free to contact us.
basic information
【Basic Performance and Specifications】 ■ Wind Pressure Resistance: Maximum 5,200Pa (S-7 3,600Pa to maximum 5,200Pa) ■ Water Tightness: W-5 (500Pa), 1,000Pa ■ Air Tightness: A-4 ■ Compatible Glass Thickness: 3mm to 28mm ■ Maximum Size of Shoji: Width 2,500mm × Height 3,500mm ■ Maximum Weight of Shoji: 300kg ■ Opening and Closing Force: Initial 75N, Intermediate 60N or less (※ Based on unique product standards considering large opening sashes) ■ Variations: Supports various track and opening types including 2 to 5 rail, single sliding, double sliding, corner sliding, etc. ※ For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■ Resort hotel lounges and guest rooms ■ Luxury residences and villas on corner lots ■ Architectural firms that want to promote open corner spaces *For more details, please download the PDF or feel free to contact us.
