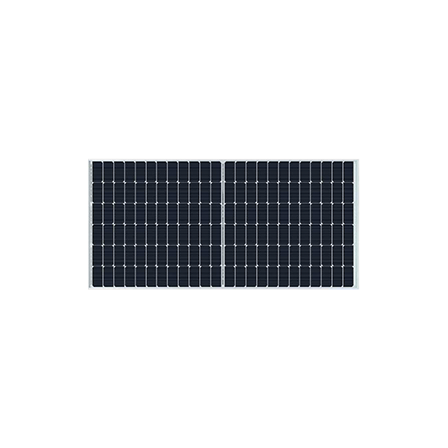

Solar cell module 'SJ-585N-22VU'
N-type LECO technology cell! The nominal maximum output operating voltage is 43.24V.
The "SJ-585N-22VU" is a monofacial solar cell module with a nominal maximum output operating current of 13.53A. Additionally, the nominal maximum output is 585W, and the conversion efficiency is 22.64%. 【Specifications (partial)】 ■ Model: SJ-585N-22VU ■ Cell Type: N-type LECO technology cell ■ Module Conversion Efficiency: 22.64% ■ Nominal Maximum Output: 585W ■ Nominal Maximum Output Operating Voltage: 43.24V ■ Nominal Maximum Output Operating Current: 13.53A *For more details, please refer to the related links or feel free to contact us.
basic information
【Other Specifications (Partial)】 ■Nominal Open Circuit Voltage: 51.70V ■Nominal Short Circuit Current: 14.40A ■Dimensions: 2,278×1,134×30mm ■Weight: 27.0kg ■Warranty: 10-year product warranty / 30-year output warranty *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
