Connection hardware [TPB] used for joints of column bases that require high pull-out resistance.
Introducing the high-durability pipe-type independent column base hardware "TPB"!

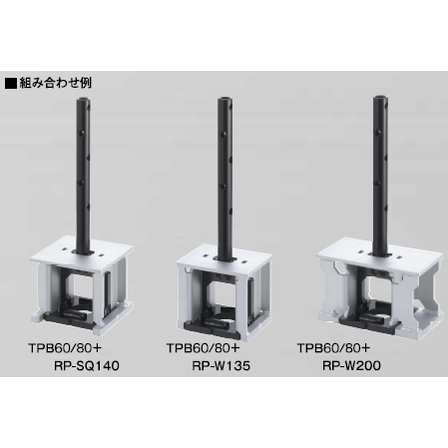

"TPB" is a high-strength pipe-type independent column base hardware used for joints of column bases that require high pull-out resistance. In conventional products like PBH, the joint with the column material had a cross-slit shape, which required the column material to be processed in a cross shape as well. However, since TPB has a pipe shape, only mortise hole processing is needed on the column material side. The orientation of TPB can be changed to match the direction of the drift pin processing, allowing for holes to be drilled without worrying about the orientation of the hardware. 【Features】 ■ Easy to install with a single anchor bolt arrangement ■ Pipe design simplifies column processing ■ Replaceable column receiving parts compatible with sizes from 105mm to 300mm and flat columns ■ Achieves high strength of 60kN/80kN *For more details, please download the PDF or feel free to contact us.
basic information
【Target】 ■Construction industry ■Renovation ■Wooden structures ■Structural materials ■Jointing between components *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■A joining hardware used for the connection of column bases that require high pull-out resistance. *For more details, please download the PDF or feel free to contact us.*
catalog（1）
Download All Catalogs
Distributors
We are a manufacturer of construction hardware that firmly protects the "wooden houses" loved by the Japanese from earthquakes. We were the first in Japan to promote the Kuretec hardware method, making traditional wooden frame construction even more robust. Additionally, we boast the highest production volume in Japan for reinforcing hardware (Z-mark, C-mark) traditionally used in wooden house construction. Furthermore, our precut business for structural frames using the latest equipment is set to expand throughout the entire eastern Japan in the future. We have group companies in Tochigi Prefecture and Chiba Prefecture in Japan, as well as in China and Guam overseas, aiming for future development into a global company.
