A lightweight electric stair cart that makes it easy to go up and down stairs with heavy loads.
Easily go up and down stairs with heavy loads! A lightweight version of an electric stair-climbing cart.

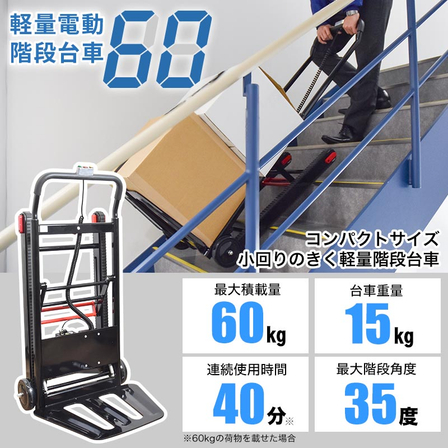

This is a cart that can smoothly move on flat surfaces and easily ascend stairs. The cart itself is lightweight, making it easy to move. It can carry loads of up to 60 kg. The maximum load capacity is 60 kg, and it can operate on stairs with a slope angle of up to 35 degrees. It is battery-operated and cordless, with a usage time of approximately 40 minutes* for extended use. *When carrying a load of 60 kg. The drive belt on the back of the cart is made of non-slip rubber with a tread pattern similar to that of a caterpillar, allowing it to ascend and descend stair steps. When in use, the drive belt is tilted to create an angle, ensuring that the entire belt makes contact with the stairs as it moves forward. The maximum angle for usable stairs is 35 degrees, and the travel speed allows for approximately 25 steps per minute in both ascent and descent. It is smaller than a medium-sized hand truck (a foldable hand truck with a load capacity of about 300 g), making it maneuverable and capable of navigating narrow stairs in places like apartments. It can be easily operated by women, allowing for effortless transportation without requiring much strength.
basic information
Size: 480×930 to 1520×295 (mm) Weight: Approximately 15kg Maximum Load Capacity: 60kg Platform Size: Width 480× Depth 340 (mm) Handle Pole: Telescopic: 4-stage adjustment (maximum extension 540mm) Maximum Stair Angle: 35 degrees Lifting Speed: Ascending: 25 steps/min, Descending: 25 steps/min (measured with a load of approximately 40kg) Motor/Output: 24V 80W Battery: 24V 6400mAh Continuous Use Time: Approximately 40 minutes (with a load of 60kg) Charging Time: Approximately 3 hours Charger: Input: 100-240V, 50/60HZ 2.0A Output: 29.4V 2A 58.8W Durability Estimate: Approximately 330 hours
Price information
¥198,000 (including tax)
Price range
P3
Delivery Time
P2
Model number/Brand name
ELECTRSL Sanko PRO
Applications/Examples of results
【Case Studies】 ◆Electrical Construction and Home Appliance Retail Company Used to lift outdoor units of commercial air conditioning systems to the rooftop. "Tasks that used to require two people can now be done by one, and there is almost no physical fatigue." ◆IT-related Company Used to transport goods in buildings without elevators, such as schools. "Since introducing this cart, one woman can easily handle the transportation." Restocking vending machines Moving books in libraries Light tasks in warehouses Transporting heavy items in buildings without elevators, such as apartment complexes Moving work tools like toolboxes For more details, please check our website's "Case Studies." Videos are available.
