Ultrasonic sensors that support the prevention of contact with heavy machinery such as trucks.
A heavy machinery contact prevention device that monitors the vehicle surroundings with four sensors to support the prevention of backing accidents and rooftop contact accidents.

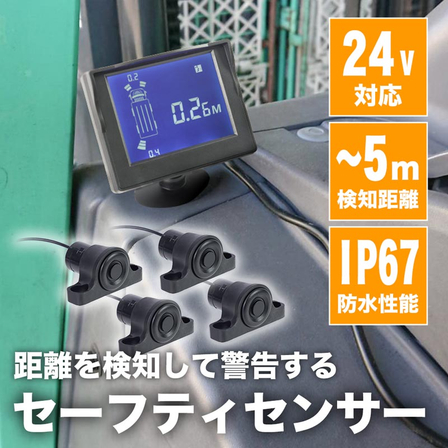

No matter how careful you are while driving, unexpected accidents can occur. The risk of accidents increases significantly, especially in areas that are difficult to see, such as behind the vehicle. The safety sensor comes standard with four sensors that display the distance to objects on a monitor. If you get too close, an alarm will sound to warn you. It is compatible with 24V systems, such as large trucks and forklifts. The sensor's response time is approximately 0.25 seconds and can detect distances up to 5 meters. In addition to showing the distance numerically, it is also displayed in a visually understandable manner. Furthermore, the alarm sound becomes more frequent as you get closer, making it easier to gauge distance.
basic information
Size: Control Box: Width 166 × Height 48 × Depth 100 (mm) Display: Width 92.7 × Height 79.3 × Depth 63.6 (mm) Weight: Approximately 1.3 kg Power Supply: 9–35V compatible, powered via cigarette socket Sensor: Ultrasonic Response Time: 0.25 seconds per sensor Detection Angle: Approximately 60 degrees up, down, left, and right Detection Distance: 0–5 m Waterproof Performance: IP67 (only for sensor and cable parts) Compatible Vehicle Types: Passenger cars, trucks, large trucks, forklifts, etc. Temperature Resistance: -30 to 70 degrees Set Contents: Control box, display, cigarette cable, 5m display cable, 4 sensors, 4 sensor attachments, Japanese instruction manual, screw set (screws, nuts, washers, spring washers) 12 sets, 8 large washers.
Price information
¥24,800 (including tax)
Price range
P2
Delivery Time
OTHER
Model number/Brand name
PARK25CBK THANKOPARK25CBK THANKO
Applications/Examples of results
For more details, please visit our company's website.
