Communication module-equipped board '7080G-PHA'
Space-saving and applicable to various IoT solutions! Introduction of LTE Cat.M1/NB-IoT compatible products.

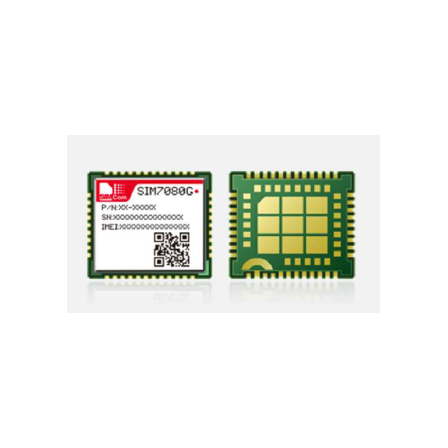

The "7080G-PHA" is a board equipped with the low-power communication module SIM7080G, specialized for M2M/IoT applications. It supports global communication frequencies and can be applied to various IoT solutions with its space-saving packaging. It is equipped with various connectors and an LTE chip antenna, allowing connection to external devices by attaching a general-purpose connector. We provide total support from device customization development to server system construction according to customer requests. 【Features】 ■ Equipped with a low-power communication module (Class 5) ■ Includes various connectors and an LTE chip antenna ■ Allows connection to external devices via a general-purpose connector ■ Total support from development to server construction *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■ Type: SIM7080G (Module) / 7080G-PHA (Board) ■ Supported Networks: au/Softbank ■ Communication Speed (LTE): Cat.M1 uplink maximum 1119kbps / downlink maximum 589kbps, NB-IoT uplink maximum 150kbps / downlink maximum 136kbps ■ Positioning Method: GNSS ■ Control Command: AT Command ■ Communication Method: Packet Communication ■ Supported Drivers: Windows 2000/XP/Vista/7/8/10/CE/Mobile/Linux/Android/MAC ■ Operating Environment: Temperature -30-80 degrees, Humidity 5%-80% (no condensation) ■ Storage Environment: Temperature -40-85 degrees, Humidity 5%-85% (no condensation) ■ Power Supply Voltage: SIM7080G DC3.0-4.6V, 7080G-PHA DC3.0-5.25V ■ Size: SIM7080G 17.6(H)x15.7(W)x2.3(D)mm, 7080G-PHA 42(H)x62(W)x14.6(D)mm *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■GPS Tracker ■Environmental Monitoring *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Distributors
IoT modules provide communication capabilities that connect IoT devices to the Internet and the cloud. In addition to offering standalone communication modules, we also provide a wide variety of antennas that have already been certified for compliance with the technical standards applicable to each communication module. Since we have established technical compatibility between the communication modules and antennas in advance, we can reduce the burden on customers associated with certification verification and additional procedures, enabling smooth product development and mass production. Based on 5G/LTE communication modules, we provide one-stop services ranging from software to hardware by enabling the development of communication gateways, mobile routers, and sensor networks using ultra-low-power wireless technology, as well as the development of applications utilizing M2M server platforms to deliver remote monitoring and visualization solutions. We sell cellular modules as the exclusive distributor in Japan for SIMCOM Wireless Solutions, Ltd.
