LTE Cat.1bis compatible board '7672G-PHA'
Supports global communication frequencies! LTE Cat.1bis compatible products applicable to various IoT solutions.

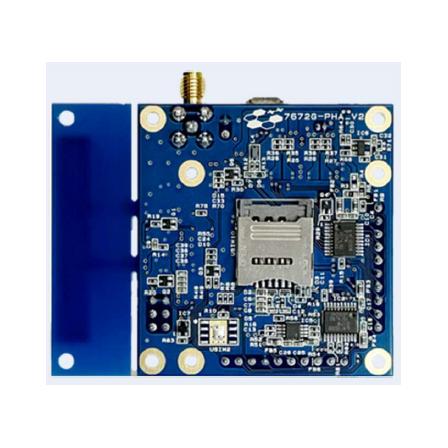

The "7672G-PHA" is a board equipped with the SIM7672G module. It adopts a low-power communication module with a Qualcomm core specialized for M2M/IOT. It supports global communication frequencies and is equipped with various connectors and an LTE chip antenna. With a general-purpose connector, it can be connected to external devices, providing total support from device customization development to server system construction. 【Features】 ■ Equipped with a low-power communication module specialized for M2M/IOT ■ Supports global communication frequencies ■ Equipped with various connectors and an LTE chip antenna ■ Can be connected to external devices with a general-purpose connector ■ Total support from device customization to server construction *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■Form: Board ■Supported Networks: NTT Docomo / SoftBank / au (planned) ■Communication Speed: 10Mbps (DL) / 5Mbps (UL) ■Positioning Method: GNSS ■Control Command: AT Command ■Communication Method: Packet Communication ■Power Voltage: USB Connector: 5V, DC Connector: 3.3–5.5V ■Size: 66(H) × 52.5(W) mm *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■ Utilization in the M2M/IOT field ■ Application to various IoT solutions ■ Connection to external devices, etc. * For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Distributors
IoT modules provide communication capabilities that connect IoT devices to the Internet and the cloud. In addition to offering standalone communication modules, we also provide a wide variety of antennas that have already been certified for compliance with the technical standards applicable to each communication module. Since we have established technical compatibility between the communication modules and antennas in advance, we can reduce the burden on customers associated with certification verification and additional procedures, enabling smooth product development and mass production. Based on 5G/LTE communication modules, we provide one-stop services ranging from software to hardware by enabling the development of communication gateways, mobile routers, and sensor networks using ultra-low-power wireless technology, as well as the development of applications utilizing M2M server platforms to deliver remote monitoring and visualization solutions. We sell cellular modules as the exclusive distributor in Japan for SIMCOM Wireless Solutions, Ltd.
