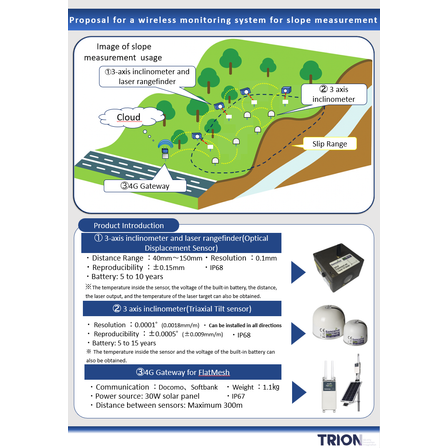

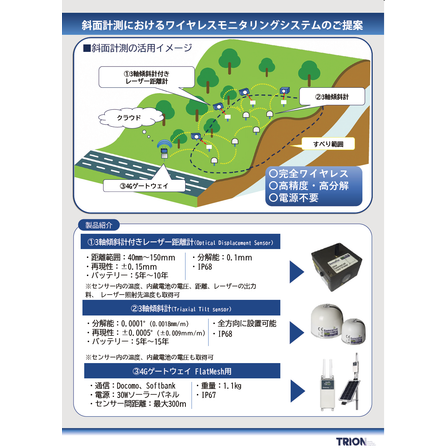

Wireless Monitoring System for Slope Measurement
No power required! Completely wireless slope measurement is possible.
By utilizing this sensor, complete wireless slope measurement is possible. - The sensors communicate with each other (up to 300m), achieving complete cordless operation. - The 4G gateway is powered by solar panels. - Additionally, precise data acquisition is possible.
basic information
- Laser distance meter with a built-in 3-axis inclinometer (ODS) - Resolution: 0.1 mm - Measurement range: 0.04 m to 150 m - Battery life: 5 to 10 years - For the 3-axis inclinometer, refer to the following TTS - IP68 - 3-axis inclinometer (TTS): - Resolution: 0.0001° (0.0018 mm/m) - Battery life: 5 to 15 years - IP68 - 4G gateway (4GGW): - Sends measurement data to the cloud - Communication: Docomo, SoftBank - Distance between sensors: up to 300 m - Power supply: Solar panel (30 W) - IP67
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Distributors
Trion Co., Ltd. has been utilizing the know-how gained from its experience as a construction consultant since its founding, including project management skills and consulting expertise, to develop ICT systems for the construction industry, provide consulting services, and create its own software products. Currently, we are providing ICT solutions not only in the construction sector but also in various fields such as railways, electricity, and manufacturing, and we are continuously striving to challenge ourselves in other areas as well.
