Ultima Wall Greening System for Public Facilities

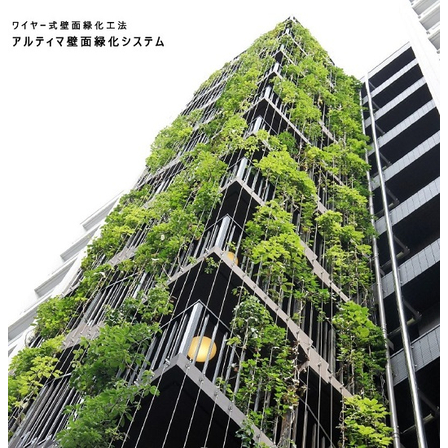

A wire-type vertical greening system that contributes to the beautification of public facility landscapes.
The beautification of landscapes in public facilities provides a comfortable space for visitors and contributes to the improvement of the facility's image. Particularly in urban areas, where greenery is scarce and environments can become bleak, vertical greening is an effective means to beautifully enhance the exterior of buildings and create harmony with nature. The Altima vertical greening system contributes to the beautification of landscapes in public facilities. 【Usage Scenarios】 - Parks, squares - Schools, hospitals - Commercial facilities - Vertical greening of public facility walls 【Benefits of Implementation】 - Beautifies the exterior of buildings - Mitigates the heat island effect - Contributes to CO2 reduction - Energy-saving effects - Improved maintenance characteristics
basic information
【Features】 - Spiral wire that is easy for climbing plants to wrap around - Reduces drooping of plants due to strong winds and heat damage from sunlight - Easy installation and shortened construction time - Capable of supporting heights of up to 8 meters - Options available for stripe, checkered, and diamond cross patterns 【Our Strengths】 Founded as a manufacturer of robust and flexible wire adjustment fasteners, we pursue reliable and easy-to-work-with products through our unique technology, focusing on functionality and safety. We have commercialized green (wall) support materials and are also engaged in environmental initiatives.
Price range
Delivery Time
Applications/Examples of results
*For more details, please refer to the materials. Feel free to contact us as well.*
Related Videos
catalog（4）
Download All Catalogs
CAD data（15）
| Model number | overview | File |
|---|---|---|
| Wire-type wall greening basic specifications L-angle × spiral wire set | This is the installation diagram for the wire-type wall greening basic specifications, L-angle × spiral wire set. |
|
| Wire-type wall greening basic specifications: Aluminum greening rail × spiral wire set | This is the installation diagram for the wire-type wall greening basic specifications, featuring an aluminum greening rail and spiral wire set. |
|
| Wire-type wall greening basic specifications: Support post with eye bolt × spiral wire set | This is the installation diagram for the wire-type wall greening basic specifications, featuring a post with an eye bolt and a spiral wire set. |
|
| Wire-type wall greening basic specifications Bolt support × spiral wire set | This is the installation diagram for the wire-type wall greening basic specifications, featuring a bolt support and spiral wire set. |
|
| Wall Greening System Spiral Wire Set Diagram |
|
|
| Wire planter integrated wall greening Wire mesh: Stripe (vertical only) _W2000×H3000 | Wire planter integrated wall greening: Green curtain hook specification for FRP planters by Tohshin Corporation. Wire tensioning: Stripe (vertical only) _W2000×H3000. |
|
| Wire planter integrated wall greening: Wire mesh (checkered pattern, vertical and horizontal) | Wire planter integrated wall greening: Green curtain hook specification for FRP planters by Toshin Corporation. Wire tensioning: checkered fabric (vertical and horizontal). |
|
| Wire planter integrated wall greening: Wire mesh (checkered pattern, vertical and horizontal) wall-mounted (opening) | Wire planter integrated wall greening: Green curtain hook specifications for FRP planters by Tohshin Corporation. Wire tensioning: Checkered cloth (vertical and horizontal) _ wall-mounted (opening). |
|
| Wire planter integrated wall greening: Wire mesh: Checkered cloth (vertical and horizontal) _ Ceiling-mounted (opening) | Wire planter integrated wall greening: Special green curtain hook specifications for FRP planters by Tohshin Corporation. Wire stretching: Checkered cloth (vertical and horizontal) _ Ceiling-mounted (opening). |
|
| Wire planter integrated wall greening (jagako planter specification) Wire mesh: stripe (vertical only) _L angle | Wire planter integrated wall greening: Jakago planter specification. Wire tensioning: Stripe (vertical only) _W2000×H3000, support material: L-angle. |
|
| Wire planter integrated wall greening (jagako planter specification) Wire mesh: checkered cross (vertical and horizontal) wall-mounted (opening) L-angle | Wire planter integrated wall greening: Jakago planter specification. Wire mesh: checkered cloth (vertical and horizontal) _W2000×H3000_ wall-mounted (opening), support material: L-angle. |
|
| Wire planter integrated wall greening (jagako planter specification) Wire mesh: check cross (vertical and horizontal) _L angle | Wire planter integrated wall greening: Jakago planter specification. Wire mesh: checkered cloth (vertical and horizontal) _W2000×H3000, support material for installation: L-angle. |
|
| Wire planter integrated wall greening (jagako planter specification) Wire mesh: stripe (vertical only) with eye bolt support. | Wire planter integrated wall greening: Jakago planter specification. Wire tensioning: Stripe (vertical only) _W2000×H3000, support material for installation: Column with eye bolt. |
|
| Wire planter integrated wall greening (jagako planter specification) Wire mesh: checkered cross (vertical and horizontal) _ opening _ with eye bolt support pole | Wire planter integrated wall greening: Jakago planter specification. Wire mesh: checkered cloth (vertical and horizontal) _W2000×H3000_ wall-mounted (opening), supporting material for installation: post with eye bolts. |
|
| Wire planter integrated wall greening (with jaga-go planter specification) Wire mesh: check cross (vertical and horizontal) with eye bolt support pole | Wire planter integrated wall greening: Jakago planter specification. Wire mesh: checkered cloth (vertical and horizontal) _W2000×H3000, support material for installation: post with eye bolt. |
|
Distributors
Strong and flexible wire has a wide range of applications and offers many possibilities. Ultima Co., Ltd. was founded as a manufacturer of wire adjustment fasteners and has been pursuing the development of products that combine functionality, safety, and reliability with excellent workability, utilizing our proprietary technology. Our product lineup includes suspension adjustment fasteners for art pieces, lighting, air conditioning ducts, handrails, and earthquake-resistant anti-tip systems, among others, with a proven track record of adoption in various applications. Additionally, as part of efforts to combat global warming, we have developed green wall support materials and are actively engaged in environmental initiatives. Drawing on the technical expertise and experience accumulated since our founding, we are committed to continuously developing new products while reliably addressing the diverse needs of the times.
