High-Quality 3D Laser Scanner Z+F IMAGER Series
Incredible measurement accuracy and speed. Utilize subsidies to realize DX for point cloud data right now! Z+F IMAGER 5024 series.

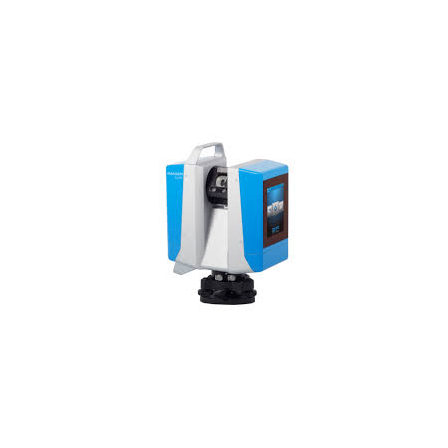

The Z+F IMAGER 5024 series is a top-of-the-line phase-based ground-mounted 3D laser scanner developed by the German company Z+F. It maintains ultra-high precision at the millimeter level while achieving an overwhelming high-speed scan of up to 2.2 million points per second. Combined with a maximum measurement range of 365 meters, it enables efficient data acquisition even on large-scale sites. Its greatest feature is its robustness, thanks to a fanless completely sealed structure. Compliant with protection class IP54, it can be safely used in dusty construction sites and adverse weather conditions. Additionally, the built-in HDR camera and powerful LED lights allow for the generation of clear color point cloud data even in dark environments. Packed with practical features such as real-time data synthesis and verification functions on-site, as well as options for model upgrades later, it is the highest quality solution that meets the needs of professionals in architecture, civil engineering, plants, and cultural heritage. We encourage you to consider it as a strong partner for improving operational efficiency and promoting digital transformation by utilizing national subsidy programs.
basic information
Measurement Principle: Phase Difference Method Maximum Measurement Range: 80m / 150m / 365m (depending on the model) Accuracy Distance Accuracy: ±1mm @1m〜50m (typical value) Measurement Speed: Maximum 2.2 MHz (2.2 million points per second) Scan Range: Horizontal 360° / Vertical 320° Protection Rating: IP54 (Dustproof and Waterproof) Camera: Built-in HDR Color Camera (Standard LED Light) Data Storage: Built-in SSD, External USB 3.0 Communication: High-speed Wi-Fi (WLAN) Power Supply: Battery-operated (approximately 2.5 hours of continuous operation) / AC power Body Size: Approximately 200 x 290 x 440 mm Weight: Approximately 9.8 kg
Price range
Delivery Time
Model number/Brand name
Z+F IMAGER Series
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
