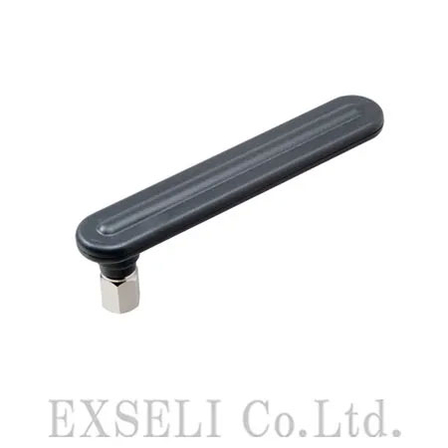

Japan Antenna Co., Ltd. Whip Antenna WH-08/2G-L
Compatible with 3G, 4G, LPWA, WiFi, and Bluetooth! A compact external antenna with RoHS-compliant SMA connector type, ideal for IoT devices.
The WH-08/2G-L (WH082GL) is a whip antenna manufactured by Nippon Antenna. * A whip antenna is an antenna that has no directionality and can receive and transmit signals from any angle. The WH-08/2G-L is an external antenna for IoT that supports carriers as well as 3G / 4G LTE / LPWA (920MHz), WiFi, and Bluetooth. It has obtained construction design certification. It is a directly mounted antenna. The WH-08/2G-L connector is an SMA-P connector, so it can be connected if the connector on the housing side is an SMA-J connector. It complies with the European environmental regulation RoHS directive. * For more details, please feel free to contact us.
basic information
● Not waterproof. ● No cable included. ● Specifications ・Dimensions: 100mm × 18mm × 27mm, 100mm × 13mm × 0.05mm ・Weight: Approximately 19g ・Connector: SMA-P ・Operating temperature: -20℃ to 70℃ ・Supported frequency: 770MHz to 2655MHz, Band 1, 3, 8, 11, 18, 19, 21, 26 ・Gain: 700MHz is less than 3.0dBi, 800MHz is less than 3.0dBi, 900MHz is less than 3.0dBi, 1500MHz is less than 3.0dBi, 1700MHz is less than 2.15dBi, 2000MHz is less than 2.15dBi, 2500MHz is less than 3.3dBi ・Horizontal plane directivity: Omnidirectional ・VSWR: 3.0 or less *For more details, please feel free to contact us.*
Price information
Manufacturer's price: Open price We aim to sell at a lower price than anywhere else. Please contact us for our selling price.
Delivery Time
Model number/Brand name
WH-08/2G-L - Nippon Antenna
Applications/Examples of results
【Examples of Use】 ■Manufacturing Industry ■Logistics and Warehousing ■Construction Industry ■Energy Industry ■Agriculture ■Retail and Store Operations ■Municipalities and Infrastructure ■Security Industry ■Telecommunications Equipment Manufacturers and SIers, etc.
