IP Normal Vector Creation Tool
Corresponds to railway and road alignment! Create IP points using the polyline command, and when the IP points are changed, the alignment will be updated.

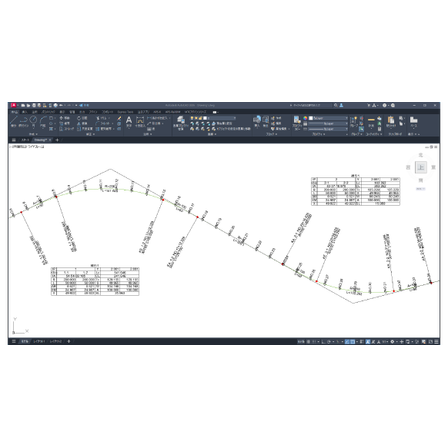

The "IP Alignment Creation Tool" is a tool that allows you to create alignments using the IP method on AutoCAD and Autodesk Civil 3D. It supports railway and road alignments. IP points can be created using the polyline command, and when the IP points are modified, the alignment is updated. The created alignment can be exported to APS-RailBIM and APS-MarkIV (including LT). Additionally, it is possible to import and edit alignment data created by the "IP method" in APS-RailBIM and APS-MarkIV (including LT). 【Product Overview】 <Railway Alignment> ■ Supports drawing condition settings for railways (IP element table, flag raising, arrowhead, etc.) ■ Major point names (BTC, BCC, etc.), kilometer display <Road Alignment> ■ Supports drawing condition settings for roads ■ Major point names (BC, EC, etc.), measurement point display *For more details, please download the PDF or feel free to contact us.
basic information
【Corresponding Processing Codes】 ■Basic Type ■Complex Heart - Egg Shape (CL) ■Complex Heart - Egg Shape (N1) *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
