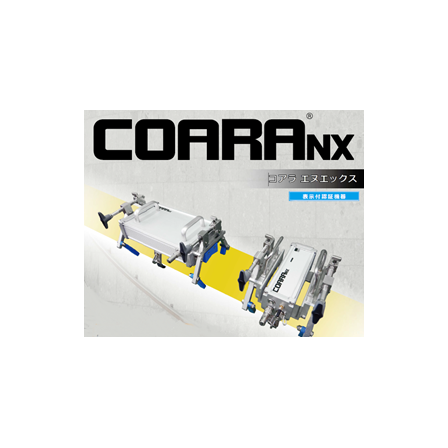

New Type - Lightweight 'COARA NX'
Achieved miniaturization and weight reduction (42kg → 13kg, approximately 1/3)! Installation on piping has become significantly easier!
"The only measuring device that can measure the total amount of concrete being poured." The continuous RI concrete moisture meter (COARA NX) can continuously and in real-time measure the unit water content of fresh concrete flowing through the pumping pipes. By installing it on the pipes of concrete pump trucks, the quality of the poured concrete can be monitored and managed. [Features] ■ Easy Installation The COARA NX has been made smaller and lighter compared to conventional devices, making installation on pumping pipes significantly easier. (Weight of the measuring device: 42kg → 13kg, approximately 1/3) ■ Remote Monitoring Capability By using the optional "SRENET," remote monitoring of the unit water content during pouring is possible. In environments away from the site, not only can the unit water content be checked, but also the pouring time. → NETIS Registration [CB-240049-A] "Concrete Unit Water Content Remote Monitoring System" *For more details, please download the PDF or contact us.
basic information
【Specifications】 ■ Measurement Method - Density Meter: Gamma-ray transmission type - Moisture Meter: Thermal neutron scattering type (source-detector opposing configuration) ■ Measurement Items - Density Meter: Unit volume mass 1500–2500 (kg/m³) - Moisture Meter: Unit water content 100–250 (kg/m³) ■ Measurement Piping: 4-inch piping (100A), 5-inch piping (125A), 6-inch piping (150A) ■ Radiation Source - Density Meter: Barium 133 less than 1.0MBq - Moisture Meter: Californium 252 1.11MBq ■ Display/Recording: Measurement computer (included with rental items) ■ Communication - Wireless Standard: Bluetooth V2.0 (Wireless strength: Class 1) - Wired Standard: Compliant with RS422 ■ Power Supply: Lithium-ion battery 5V (rechargeable, continuous use for over 12 hours) ■ Main Unit Weight - Density Meter: 6.3kg - Moisture Meter: 6.4kg ■ Main Unit Dimensions - Density Meter: 270W×310D×293H (mm) - Moisture Meter: 474W×310D×293H (mm) ■ Other: Built-in vibration sensor ■ Options: SRENET, range sensor, warning lamp *For more details, please download the PDF or contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ Concrete quality control ■ Measurement of unit water volume ■ Technical proposals and creative ideas ■ ICT construction 【Examples of Achievements】 ■ Public works (Ministry of Land, Infrastructure, Transport and Tourism; NEXCO commissioned projects) and others
catalog（1）
Download All Catalogs
Distributors
Since our establishment, we have developed many measurement technologies that utilize various types of radiation emitted by radioisotopes, particularly gamma rays and neutron rays, in the construction field, specifically the RI method. The characteristics of the RI method are "non-destructive," "rapid," and "high precision." Currently, based on the development of unique measuring instruments that leverage these characteristics and the proposal of investigation methods, we focus on consulting that comprehensively addresses issues related to ground and soil construction by combining soil and geological surveys. Additionally, we also engage in the sale and rental of these RI instruments. Please feel free to contact us if you have any requests.
