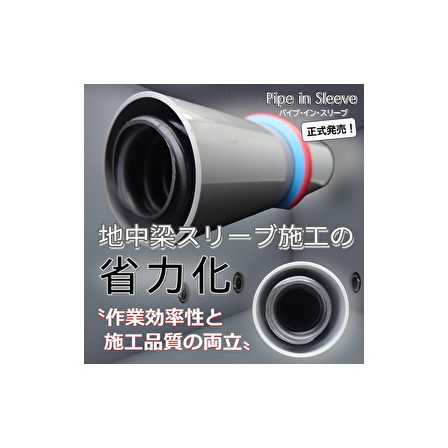

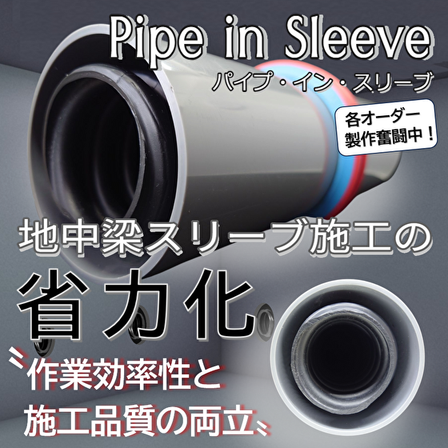

Labor-saving! Waterproof sleeve for underground outer walls (underground beams) Pipe-in-Sleeve.
[Official Release] Waterproof Sleeve for Underground Walls "Pipe-in-Sleeve" (Abbreviated as PIS) Reducing Labor at Construction Sites! Enhancing Waterproof Performance of Buildings!
■Recently, our "Pipe-in-Sleeve," showcased at the JECA Fair 2025, is officially released with great anticipation.■ In the underground wall section (underground beam sleeve), we have pre-treated the PVC sleeve and the outer space (gap) of the FEP with "waterproof treatment" at the factory, making it prefabricated for the site. On-site, there is no need for cumbersome work; after installing the PIS, basically only joint connections are required. It ensures stable waterproofing! Achieving work efficiency and promoting flood prevention and water resistance. This is an innovative and advanced product for underground beam sleeve construction. <Features> ■ Excellent waterproof performance [Flood prevention and water resistance promotion] ■ Proposal for labor-saving at construction sites ■ Adaptable to individual project design specifications ■ Improved work efficiency, standardized quality, and enhanced maintainability [To Designers and Contractors] FEP pipe through-piping, bell mouth terminal installation, connection of different pipes (AQ type), and various connection parts of Eflex can be arranged according to the specifications of each construction site! Furthermore, it can also respond to unexpected water leaks! It combines maintenance and serviceability, making it a versatile and highly adaptable product. (Feel free to request drawings as well) *For details, please request a catalog from "Contact Us" or view the PDF data from "Download"
basic information
<Specifications> ●Water Resistance ・Test Value (Smooth Inner Pipe) 0.1MPa×72 hours (This product does not guarantee complete waterproofing.) ●Composition ・Sleeve Material: Rigid Polyvinyl Chloride Pipe (JIS K 6741) ・Sleeve Penetration Pipe: Underground Electric Wire Protection Pipe, Furukawa Electric Co., Ltd. Eflex ・Sealing Material: Curing Waterproof Material <Notes> *This product does not include a "water stop ring." Please prepare a water stop material that matches the outer diameter of the sleeve according to the manufacturer's specifications. *For FEP/penetration pipe connections, please select straight joints and different pipe joints (AQ type) from the Aqua series of Furukawa Electric Co., Ltd. *The "waterproof performance" of the sealing material (curing waterproof material) is based on internal measurement values and is not guaranteed. [Contact Information] ・Planning and Proposal: Furukawa Elecom Co., Ltd. New Business Promotion Office TEL: +81 3-5297-8711 FAX: +81 3-5297-8705 ・Design and Manufacturing: EPJ INC. TEL: +81 3-5643-8137 FAX: +81 3-5643-8138 Email: info@epj-inc.co.jp
Price range
Delivery Time
Model number/Brand name
PIS
Applications/Examples of results
■Development Concept■ "Labor-saving in Construction Sites" In modern construction projects, the aging of skilled workers and the departure of young people have led to a constant demand for both work efficiency and construction quality. By utilizing "prefabrication technology," we aim to solve the persistent issues at construction sites and extend the lifespan of buildings. Furthermore, we are developing groundbreaking products that also incorporate maintenance and upkeep performance! "Enhancing the Waterproofing Performance of Buildings" At each construction site, the narrow gaps between the pit, underground beam sleeves, and penetrating pipes require "waterstop treatment" as mandated. According to the "Guidelines for Flood Prevention Measures for Electrical Equipment in Buildings" issued by the Ministry of Land, Infrastructure, Transport and Tourism and the Ministry of Economy, Trade and Industry, we are advocating for the development of products that possess safe and reliable waterproofing performance! <Areas of Demand> Underground beam sleeves (subterranean outer wall sections) for various construction projects <Countermeasure Types> - Flood prevention construction: Guidelines for Flood Prevention Measures for Electrical Equipment in Buildings by the Ministry of Land, Infrastructure, Transport and Tourism / Ministry of Economy, Trade and Industry - Promotion of waterproofing: Concept of waterproofing for sewer facilities by the Ministry of Land, Infrastructure, Transport and Tourism, etc. 【Inquiry Ranking】 1st: Medical Facilities 2nd: Accommodation Facilities 3rd: Commercial Facilities 4th: Educational Facilities 5th: Offices (High-rise)
Related Videos
Line up（16）
| Model number | overview |
|---|---|
| PIS30U | Conduit Pipe / FEP-30 * Rigid Polyvinyl Chloride Pipe VP-50 |
| PIS40U | Conduit Pipe / FEP-40 * Rigid Polyvinyl Chloride Pipe VU-65 |
| PIS50U | Conduit Pipe / FEP-50 * Rigid Polyvinyl Chloride Pipe VU-75 |
| PIS65U | Conduit Pipe / FEP-65 * Rigid Polyvinyl Chloride Pipe VU-100 |
| PIS80U | Conduit Pipe / FEP-80 * Rigid Polyvinyl Chloride Pipe VU-125 |
| PIS100U | Conduit Pipe / FEP-100 * Rigid Polyvinyl Chloride Pipe VU-150 |
| PIS125U | Conduit Pipe / FEP-125 * Rigid Polyvinyl Chloride Pipe VU-200 |
| PIS150U | Conduit Pipe / FEP-150 * Rigid Polyvinyl Chloride Pipe VU-250 |
| PIS30P | Conduit Pipe / FEP-30 * Rigid Polyvinyl Chloride Pipe VP-50 |
| PIS40P | Conduit Pipe / FEP-40 * Rigid Polyvinyl Chloride Pipe VP-65 |
| PIS50P | Conduit Pipe / FEP-50 * Rigid Polyvinyl Chloride Pipe VP-80 |
| PIS65P | Conduit Pipe / FEP-65 * Rigid Polyvinyl Chloride Pipe VP-100 |
| PIS80P | Conduit pipe / FEP-80 * Rigid polyvinyl chloride pipe VP-125 |
| PIS100P | Conduit Pipe / FEP-100 * Rigid Polyvinyl Chloride Pipe VP-150 |
| PIS125P | Conduit Pipe / FEP-125 * Rigid Polyvinyl Chloride Pipe VP-200 |
| PIS150P | Conduit pipe / FEP-150 * Rigid PVC pipe VP-250 |
catalog（5）
Download All Catalogs
News about this product（3）
-
Lightweight! Polyethylene pedestrian passage (pedestrian entrance) is set to be released.
"Lightweight" accelerates "efficiency" on site! Materials that combine high pressure resistance and direct workability with "lightweight." In particular, rigid polyvinyl chloride pipes (PVC) weigh about 53 kg/m, while polyethylene sleeves weigh only about 17 kg/m, showing a significant weight difference! We guarantee a definite improvement in work efficiency at construction sites. Furthermore, it also contributes to reducing the burden on workers and lowering the risk of accidents, enhancing safety!
-
[Official Release] Waterproof Sleeve for Underground Walls (Underground Beam Sleeve) Pipe-in-Sleeve
JECA Fair 2025, 73rd Electrical Construction Industry Exhibition May 28 (Wed) - May 30 (Fri), 2025 At the booth of Furukawa Electric Co., Ltd. in Intex Osaka, we announced: "Waterproof Sleeve for Underground Exterior Walls (Underground Beam Sleeve) - Pipe in Sleeve" Innovating Underground Beam Sleeve Construction! We apply "waterproof treatment" in advance at the factory to the outer space (gap) between the PVC sleeve and the electrical conduit (E-Flex), delivering it in a prefabricated (integrated) state. At the construction site, there is no need for cumbersome "waterproof treatment," and after installation, only joint connections are required, improving work efficiency and reducing labor. Furthermore, it ensures stable waterproof performance for flood prevention and waterproofing work! Enhancing the waterproof performance of buildings while balancing work efficiency and construction quality! We sincerely appreciate the inquiries we have received from various fields since the launch. Currently, we are experiencing a high volume of inquiries, and for large orders, we kindly ask for orders to be placed with ample lead time beyond the usual delivery schedule. We ask for your understanding and cooperation.
-
Underground and outer wall waterproof sleeve (underground beam sleeve) pipe-in-sleeve release (coming soon)
In the underground beam sleeve, we deliver the PVC sleeve and the electrical conduit (E-flex) with pre-applied "waterproof treatment" in a prefabricated (integrated) state from the factory. At the construction site, there is no need for troublesome "waterproof treatment," and after installation, only joint connections are required, achieving work efficiency and labor-saving. Furthermore, it ensures stable waterproof performance for flood prevention and water resistance construction! This product is an innovative and advanced solution for underground beam sleeve construction. JECA Fair 2025 73rd Electrical Industry Exhibition May 28 (Wed) - May 30 (Fri), 2025 (At Intex Osaka Halls 2, 3, 4, and 5) We will be exhibiting product samples at the booth of Furukawa Electric Co., Ltd. <Hall 4 - 41>. We sincerely look forward to your visit.
