Underground exterior wall sleeve - Labor saving "Pipe-in-Sleeve" water immersion measures/waterproofing

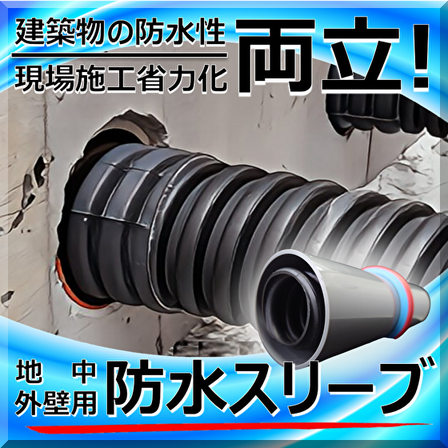

[Official Release] Waterproof Sleeve for Underground Walls "Pipe-in-Sleeve" (Abbreviated as PIS) Reducing Labor at Construction Sites! Enhancing Waterproof Performance of Buildings!
■Recently, our "Pipe-in-Sleeve," showcased at the JECA Fair 2025, is officially launched with great anticipation.■ In the underground wall section (underground beam sleeve), we have pre-treated the PVC sleeve and the outer space (gap) of the FEP with "waterproof treatment" at the factory, making it prefabricated for the site. No cumbersome work is required on-site; after the PIS installation, only joint connections are basically needed. Ensuring stable waterproofing! Achieving work efficiency and promoting flood prevention and water resistance. This is an innovative and advanced product for underground beam sleeve construction. <Features> ■ Excellent waterproof performance [Flood prevention and water resistance promotion] ■ Proposal for labor-saving at construction sites ■ Adaptable to individual design specifications of construction projects ■ Improved work efficiency, standardized quality, and enhanced maintenance [To designers and contractors] FEP pipe routing, bell mouth terminal installation, connection of different types of pipes (AQ type), and various connection parts of FEP can be arranged to fit the specifications of individual construction sites! Furthermore, it can also respond to unexpected leaks! It combines maintenance and serviceability, making it a versatile and highly adaptable product. (Feel free to request drawings) *For details, please request a catalog from "Contact Us" or view the PDF data from "Download"
basic information
<Specifications> ●Water Resistance ・Test Value (Smooth Interior Pipe) 0.1MPa×72 hours (This product does not guarantee complete waterproofing.) ●Composition ・Sleeve Material: Rigid Polyvinyl Chloride Pipe (JIS K 6741) ・Sleeve Penetration Pipe: Underground Electric Wire Protection Pipe, Furukawa Electric Co., Ltd. Eflex ・Sealing Material: Curing Waterproof Material <Notes> * This product does not come with a "water stop ring." Please prepare a water stop material that matches the outer diameter of the sleeve according to the manufacturer's specifications. * For FEP/penetration pipe connections, please select straight joints and dissimilar pipe joints (AQ type) from the Aqua series by Furukawa Electric Co., Ltd. * The "waterproof performance" of the sealing material (curing waterproof material) is based on internal measurement values and is not a guaranteed value. [Contact Information] ・Planning and Proposal: Furukawa Elecom Co., Ltd. New Business Promotion Office TEL: +81 3-5297-8711 FAX: +81 3-5297-8705 ・Design and Manufacturing: EPJ INC. TEL: +81 3-5643-8137 FAX: +81 3-5643-8138 Email: info@epj-inc.co.jp
Price range
Delivery Time
Model number/Brand name
PIS
Applications/Examples of results
■Development Concept■ "Labor-saving in Construction Sites" In modern construction projects, the aging of skilled workers and the departure of young people have led to a constant demand for both work efficiency and construction quality. By utilizing "prefabrication technology," we aim to solve the persistent issues at construction sites and extend the lifespan of buildings. Furthermore, we are developing groundbreaking products that also incorporate maintenance and upkeep performance! "Enhancing the Waterproofing Performance of Buildings" At each construction site, the narrow gaps between the pit, underground beam sleeves, and penetrating pipes require "water stop treatment" as mandated. According to the "Guidelines for Flood Prevention Measures for Electrical Equipment in Buildings" issued by the Ministry of Land, Infrastructure, Transport and Tourism and the Ministry of Economy, Trade and Industry, we are advocating for the development of products that possess safe and reliable waterproofing performance! <Areas of Demand> Underground beam sleeves (underground exterior wall sections) for various construction projects <Countermeasure Types> - Flood prevention construction: Guidelines for Flood Prevention Measures for Electrical Equipment in Buildings by the Ministry of Land, Infrastructure, Transport and Tourism / Ministry of Economy, Trade and Industry - Promotion of waterproofing: Concepts for Waterproofing of Sewer Facilities by the Ministry of Land, Infrastructure, Transport and Tourism, etc. 【Inquiry Project Ranking】 1st: Medical Facilities 2nd: Accommodation Facilities 3rd: Commercial Facilities 4th: Educational Facilities 5th: Offices (High-rise)
Detailed information
-
Pipe-in-sleeve connection 1
-
Silicone caulk removal
-
Pipe-in-sleeve connection 2
-
Adhesive (various tapes) peeling
-
Pipe-in-sleeve connection 3
-
Insulation (urethane) peeling
-
After the installation of the pipe in the sleeve (after pouring) 1
-
Epoxy-based two-component adhesive peeling (within usable time)
-
After the installation of the pipe in the sleeve (after pouring) 2
-
Oil-based paint stripping
-
Graffiti removal
-
Tire mark stain removal
-
Asphalt stain removal
-
Removal of oil stains from construction machinery
Related Videos
Line up（16）
| Model number | overview |
|---|---|
| PIS30U | Conduit pipe / FEP-30 * Rigid PVC pipe VP-50 |
| PIS40U | Through pipe / FEP-40 * Rigid PVC pipe VU-65 |
| PIS50U | Conduit Pipe / FEP-50 * Rigid Polyvinyl Chloride Pipe VU-75 |
| PIS65U | Conduit Pipe / FEP-65 * Rigid Polyvinyl Chloride Pipe VU-100 |
| PIS80U | Conduit Pipe / FEP-80 * Rigid Polyvinyl Chloride Pipe VU-125 |
| PIS100U | Conduit pipe / FEP-100 * Rigid PVC pipe VU-150 |
| PIS125U | Conduit Pipe / FEP-125 * Rigid Polyvinyl Chloride Pipe VU-200 |
| PIS150U | Conduit Pipe / FEP-150 * Rigid Polyvinyl Chloride Pipe VU-250 |
| PIS30P | Conduit Pipe / FEP-30 * Rigid Polyvinyl Chloride Pipe VP-50 |
| PIS40P | Conduit pipe / FEP-40 * Rigid polyvinyl chloride pipe VP-65 |
| PIS50P | Conduit Pipe / FEP-50 * Rigid PVC Pipe VP-80 |
| PIS65P | Conduit pipe / FEP-65 * Rigid polyvinyl chloride pipe VP-100 |
| PIS80P | Conduit pipe / FEP-80 * Rigid PVC pipe VP-125 |
| PIS100P | Conduit Pipe / FEP-100 * Rigid Polyvinyl Chloride Pipe VP-150 |
| PIS125P | Conduit Pipe / FEP-125 * Rigid Polyvinyl Chloride Pipe VP-200 |
| PIS150P | Conduit Pipe / FEP-150 * Rigid Polyvinyl Chloride Pipe VP-250 |
catalog（5）
Download All Catalogs
News about this product（2）
-
Lightweight! Polyethylene pedestrian passage (pedestrian entrance) is set to be released.
"Lightweight" accelerates "efficiency" on site! Materials that combine high pressure resistance and direct workability with "lightweight." In particular, rigid polyvinyl chloride pipes (PVC) weigh about 53 kg/m, while polyethylene sleeves weigh only about 17 kg/m, showing a significant weight difference! We guarantee a definite improvement in work efficiency at construction sites. Furthermore, it also contributes to reducing the burden on workers and lowering the risk of accidents, enhancing safety!
-
[Official Release] Waterproof Sleeve for Underground Walls (Underground Beam Sleeve) Pipe-in-Sleeve
JECA Fair 2025, 73rd Electrical Construction Industry Exhibition May 28 (Wed) - May 30 (Fri), 2025 At the booth of Furukawa Electric Co., Ltd. in Intex Osaka, we announced: "Waterproof Sleeve for Underground Exterior Walls (Underground Beam Sleeve) - Pipe in Sleeve" Innovating Underground Beam Sleeve Construction! We apply "waterproof treatment" in advance at the factory to the outer space (gap) between the PVC sleeve and the electrical conduit (E-Flex), delivering it in a prefabricated (integrated) state. At the construction site, there is no need for cumbersome "waterproof treatment," and after installation, only joint connections are required, improving work efficiency and reducing labor. Furthermore, it ensures stable waterproof performance for flood prevention and waterproofing work! Enhancing the waterproof performance of buildings while balancing work efficiency and construction quality! We sincerely appreciate the inquiries we have received from various fields since the launch. Currently, we are experiencing a high volume of inquiries, and for large orders, we kindly ask for orders to be placed with ample lead time beyond the usual delivery schedule. We ask for your understanding and cooperation.
Distributors
A manufacturer specialized in planning, design, and engineering. We focus on product development to solve various issues at construction sites, providing innovative, cutting-edge, and ecological products. Please feel free to contact us.
