Polyethylene Sleeve / Access Hole (Human Access Port) CAD Data List

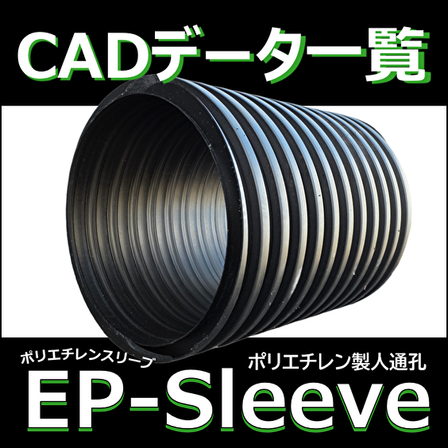

Polyethylene Sleeve / Manhole (Access Opening) EP-Sleeve CAD data is available for download.
When using the CAD data download, please check the following notes in advance. From the moment you use the provided data, you are considered to have agreed to the following notes. Thank you for your understanding. <Notes> ◆ The CAD data is to be used solely for the purpose of considering the adoption of our products, and should not be used for any other purpose. ◆ The copyright and ownership of the CAD data belong to EPJ Corporation, and you may not reuse (repurpose) the data in digital or print media without the consent of EPJ Corporation. Furthermore, please refrain from lending or transferring it to third parties. ◆ Please refrain from modifying or processing the CAD data without permission. ◆ Please be aware that we cannot be held responsible for any results arising from the use of the CAD data. ◆ The published data may be updated or deleted without notice due to product improvements or version upgrades. Thank you for your understanding. * For details, please request a catalog through "Contact Us" and view the PDF data through "Download."
basic information
EP-Sleeve (EP-Sleeve) [Underground Beam: Passage Hole (Passage Opening) Use] <Specifications> (This product is based on nominal inner diameter) - EP-600 Inner diameter: 600 / Outer diameter: 700 (mm) Reference weight: approximately 17kg/m * EP-700 Inner diameter: 700 / Outer diameter: 816 (mm) Reference weight: approximately 23kg/m * EP-800 Inner diameter: 800 / Outer diameter: 938 (mm) Reference weight: approximately 29kg/m [Manufacturing length: Minimum 300 to Maximum 1900 mm] Note 1) The allowable tolerance for the inner diameter of the pipe is ±1.5%. Note 2) The cutting tolerance for the pipe is manufacturing length -5mm to 0mm. Note 3) * Sizes are not kept in regular stock. Please confirm the manufacturing lead time in advance. Contact: EPJ Co., Ltd. [EPJ] TEL: 03-5643-8137 FAX: 03-5643-8138 Email: info@epj-inc.co.jp
Price range
Delivery Time
Model number/Brand name
EP-Sleeve
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
Line up（3）
| Model number | overview |
|---|---|
| EP-600 Nominal Diameter (Inner Diameter) | Outer diameter: 700mm |
| ※EP-700 Nominal Diameter (Inner Diameter) | Outer diameter: 816mm (not a regular stock item) |
| ※EP-800 Nominal Diameter (Inner Diameter) | Outer diameter: 938mm (not a regular stock item) |
