Ventilation Grille "Movable Grille AF (All Free)"
Installed on frame-type and flush-type doors! H dimensions can be manufactured in 1mm increments.

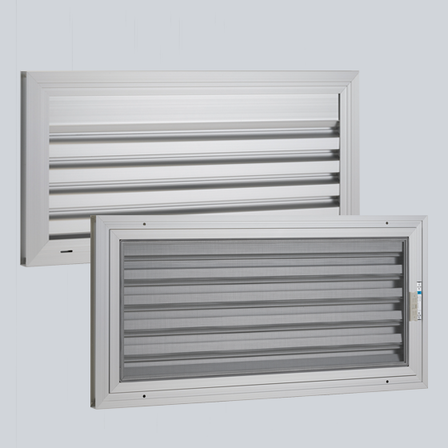

The "Movable Ventilation Louver AF (All Free)" is a ventilation louver with movable blades. There are two types: one that is integrated into an aluminum frame and another that can be installed on a flush door. By installing it in places that require ventilation, such as kitchen doors, office partitions, and storage rooms, efficient ventilation can be achieved. Additionally, due to the adjustment allowance of AF (All Free), the height can be manufactured in 1mm increments, and the frame type can accommodate a maximum height of 1306mm by setting a step material. *For more details, please download the PDF or feel free to contact us.
basic information
■Main materials: Aluminum (partially resin) ■Surface treatment: Anodized composite coating ■Color tone: Silver matte ■Production range ・For frames W150mm–900mm H144mm–651mm H652mm–1306mm (step set) ・For flush doors W150mm–900mm H173mm–680mm ■Types ・For frames ・Frame step set ・For flush doors *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
