Light Outlet
By using an optical outlet... [It simplifies recovery during disconnection issues] [You can easily move the installation location of the ONU and other devices with a patch cord]
You can use existing wall switch boxes and modular jacks as they are, simply by replacing the decorative plate and mounting frame to use them as optical outlets! 【Features】 ■ Allows installation of optical outlets without compromising the aesthetics of your living room or study ■ Equipped with a dust-proof and light-shielding automatic shutter ■ Agile modular jacks and blank chips can be mounted on the main base ■ Compatible with JIS standard switch boxes ■ Ensures a bending radius of R15 inside the switch box ■ Simple structure allows for easy wiring of optical cables ■ The two-way and three-way types are available in "H" 10mm and "L" 8mm to match wiring device frames *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications】 Wall connection method: Optical outdoor cable or indoor cable with a permissible bending radius of 15mm or less, 1 line Incoming cable: Cable with a permissible bending radius of 15mm or less Insertion loss: 0.5dB or less *1 Reflection attenuation: 40.0dB or more *2 *1, *2 Insertion loss and reflection attenuation are values at 1310nm and 1550nm Dimensions (mm) TD-1619-5 : W75×H120×D15.5 TD-1736-6 "2H": W124×H122×D17.5 TD-1736-7 "2L": W124×H122×D15.5 TD-1736-8 "3H": W170×H122×D17.5 TD-1736-9 "3L": W170×H122×D15.5 *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
TD-1619-5、TD-1736-6、TD-1736-7、TD-1736-8、TD-1736-9
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Line up（5）
| Model number | overview |
|---|---|

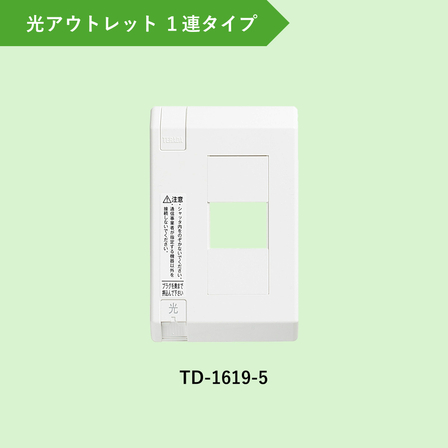

| TD-1619-5 | Light Outlet Type 1 Series |
| TD-1736-6「2H」 | Light Outlet Type 2 (Compatible with Mounting Frame Height 10mm) |
| TD-1736-7「2L」 | Light Outlet Type 2 (Compatible with Mounting Frame Height 8mm) |
| TD-1736-8「3H」 | Light Outlet 3-Connection Type (Compatible with Mounting Frame Height 10mm) |
| TD-1736-9「3L」 | Light Outlet 3-Connection Type (Compatible with Mounting Frame Height 8mm) |
catalog（2）
Download All Catalogs
Distributors
TERADA Corporation is a manufacturer of electrical materials such as communication power supply equipment, optical network equipment, floor outlets, and OA taps. We provide comprehensive support for development, manufacturing, and sales within the group.
