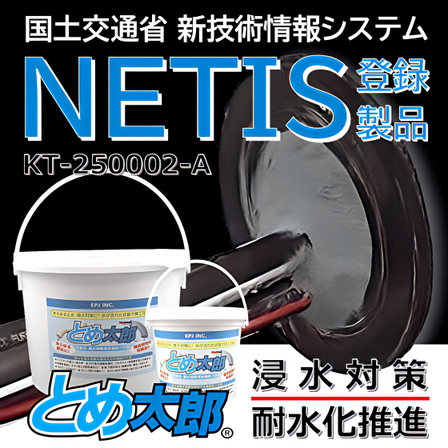

Waterproofing measures for penetrations using non-hardening water stop material Tome Taro (R) [NETIS]
Trusted brand Tome Taro® NETIS registered "Flood Prevention and Waterproofing Promotion Construction" into a new realm!
<NETIS Registration Number: KT250002-A> Water-stopping material Tome Taro registered under the jurisdiction of "KT"! "Water ingress countermeasure method for penetrations using non-curing water-stopping material that does not dissolve in water and maintains viscosity" 【Non-curing Polyolefin-based One-component Water-stopping Putty Tome Taro (R)】 <Features> ■ Heat resistance up to 90℃, stable water stopping without yielding to high-pressure cables ■ Putty alone/water-tight performance clears 0.05MPa (with optional use 0.15MPa) ■ Can also handle water leakage (flowing water) ■ Consideration for cable re-pulling allows for removal/re-filling ■ Unlike curing water-stopping materials, there is no curing shrinkage, allowing for continuous water stopping ■ A sense of security with abundant adoption results in both public and private sectors ■ Safe rodent prevention, also blocks rodent intrusion ■ A wide range of options to accommodate various situations ■ "Japan Quality" assurance and reliable quality ■ Ecology & Safety gentle to the Earth and humanity 【TOMETARO PAGE】 https://epj-inc.co.jp/page-tometaro.php *For details, please request a catalog via "Contact Us" or view the PDF data from "Download".
basic information
<Main Uses> ◆ Prevention and measures against water leakage along laid cables ◆ Treatment of water leakage in handholes ◆ Prevention and measures against water leakage from cable conduit materials and gaps in wall joints ◆ Prevention and measures against water leakage around sleeves ◆ Prevention and measures against water leakage from concrete cracks ◆ Sealing and condensation prevention inside cubicles and similar enclosures ◆ Prevention of rodent intrusion and environmental pest control Tome Taro (R) Channel [EPJ INC.] ● Tome Taro filling construction video Ver. 3 https://www.youtube.com/watch?v=S-U0qXw_u9o ● Proposal for waterproof sleeves for underground walls "Pipe-in-Sleeve" https://www.youtube.com/watch?v=9ROp4sU2Rpc ~ Usage instructions are available on YouTube; please be sure to check before filling work. If you have any questions regarding handling, please do not hesitate to contact us at the information below ~ Contact: EPJ Corporation [E-P-J] TEL: 03-5643-8137 FAX: 03-5643-8138 Email: info@epj-inc.co.jp
Price range
Delivery Time
Model number/Brand name
TOMETARO
Applications/Examples of results
*R2.6 Ministry of Land, Infrastructure, Transport and Tourism Publication "Guidelines for Flood Prevention Measures for Electrical Equipment in Buildings" *R3.4 (Public Interest Incorporated Foundation) Japan Sewerage New Technology Organization "Promotion of Waterproofing (Final Version)" The adoption of these measures in construction work is rapidly increasing. Electrical equipment (handhole pipe openings, underground penetrations, around piping) Mechanical equipment (underground penetrations, around piping) Civil engineering and construction 【Ministry of Land, Infrastructure, Transport and Tourism Adoption Records】 <2023 Fiscal Year> - A Bypass Pavement No. 3 Construction - T International Airport East Side Apron Lighting Improvement Work <2024 Fiscal Year> - Manufacturing and installation of a complete set of power distribution equipment for the new F Airport terminal - Development project for the K Port fueling facility of the Japan Coast Guard - S Electric Cable Joint Trench Construction for Fiscal Years 2022 and 2023 - Renovation work for T Office of the S River Office - Construction work for the main body of the new M Dam for Fiscal Year 2020 *Other public offices and local government flood prevention and waterproofing construction projects, as well as numerous adoption records for renewable energy construction and power-related companies. For details, please check the related catalog and various "Tome Taro Adoption Record Sheets."
Detailed information
Related Videos
Line up（6）
| Model number | overview |
|---|---|
| TM-B5 | Tome Taro 5kg Cup |
| TM-B1 | Tome Taro 1kg Cup |
| SU-1 | (Optional) Suutaro Backup Material 20×70×1,000L |
| HT-1K | (Optional) Hatsu-ray 1kg bag |
| PK375 | (Optional) Pikaristar 375ml (Tome Taro Removal Agent) |
| PK375H | (Optional) Pikaristar Box 375ml x 6 bottles (Tome Taro Removal Material) |
catalog（9）
Download All Catalogs
CAD data（12）
| Model number | overview | File |
|---|---|---|
| Drawing: Tome Taro Filling Cross Section (2 Layers) Bell Mouth Specification | Non-drying polyolefin-based single-component water-stopping putty "Tome TaroⓇ" Furukawa Electric Co., Ltd. underground cable protection pipe "Eflex" This is a cross-sectional view of the two-layer filling at the handhole wall surface/cable penetration section (bell mouth). |
|
| Drawing: Tome Taro Filling Cross Section (2 Layers) Bell Mouth Specification | Non-drying polyolefin-based single-component water-stopping putty "Tome TaroⓇ" Furukawa Electric Co., Ltd. underground cable protection pipe "Eflex" This is a cross-sectional view of the two-layer filling at the handhole wall surface/cable penetration section (bell mouth). |
|
| Drawing: Tome Taro Filling Cross Section (2 Layers) Bell Mouth Specification | Non-drying polyolefin-based single-component water-stopping putty "Tome TaroⓇ" Furukawa Electric Co., Ltd. underground cable protection pipe "Eflex" This is a cross-sectional view of the two-layer filling at the handhole wall surface/cable penetration section (bell mouth). |
|
| Drawing: Tome Taro Filling Cross Section (2 Layers) Aqua Connector® Specification | Non-drying polyolefin-based single-component waterproofing putty "Tome Taro®" Furukawa Electric Co., Ltd. underground cable protection pipe "Eflex" This is a cross-sectional view of the two-layer filling at the handhole wall/cable penetration (Aqua Connector). |
|
| Drawing: Tome Taro Filling Cross Section (2 Layers) Aqua Connector® Specification | Non-drying polyolefin-based single-component waterproofing putty "Tome Taro®" Furukawa Electric Co., Ltd. underground cable protection pipe "Eflex" This is a cross-sectional view of the two-layer filling at the handhole wall/cable penetration (Aqua Connector). |
|
| Drawing: Tome Taro Filling Cross Section (2 Layers) Aqua Connector® Specification | Non-drying polyolefin-based single-component waterproofing putty "Tome Taro®" Furukawa Electric Co., Ltd. underground cable protection pipe "Eflex" This is a cross-sectional view of the two-layer filling at the handhole wall/cable penetration (Aqua Connector). |
|
| Drawing: Tome Taro Filling Cross Section (3 Layers) Bell Mouth Specification | Non-drying polyolefin-based one-component waterproofing putty "Tome Taro" + "Hatsureru" Furukawa Electric Co., Ltd. Underground cable protection pipe "Eflex" This is a cross-sectional view of the three-layer filling at the handhole wall/cable penetration section (bell mouth). |
|
| Drawing: Tome Taro Filling Cross Section (3 Layers) Bell Mouth Specification | Non-drying polyolefin-based one-component waterproofing putty "Tome Taro" + "Hatsureru" Furukawa Electric Co., Ltd. Underground cable protection pipe "Eflex" This is a cross-sectional view of the three-layer filling at the handhole wall/cable penetration section (bell mouth). |
|
| Drawing: Tome Taro Filling Cross Section (3 Layers) Bell Mouth Specification | Non-drying polyolefin-based one-component waterproofing putty "Tome Taro" + "Hatsureru" Furukawa Electric Co., Ltd. Underground cable protection pipe "Eflex" This is a cross-sectional view of the three-layer filling at the handhole wall/cable penetration section (bell mouth). |
|
| Drawing: Tome Taro Filling Cross Section (3 Layers) Aqua Connector® Specification | Non-drying polyolefin-based single-component water stop putty "Tome Taro" + "Hatsureru" Furukawa Electric Co., Ltd. Underground cable protection pipe "Eflex" This is a cross-sectional view of the three-layer filling at the handhole wall and cable penetration section (Aqua Connector). |
|
| Drawing: Tome Taro Filling Cross Section (3 Layers) Aqua Connector® Specification | Non-drying polyolefin-based single-component water stop putty "Tome Taro" + "Hatsureru" Furukawa Electric Co., Ltd. Underground cable protection pipe "Eflex" This is a cross-sectional view of the three-layer filling at the handhole wall and cable penetration section (Aqua Connector). |
|
| Drawing: Tome Taro Filling Cross Section (3 Layers) Aqua Connector® Specification | Non-drying polyolefin-based single-component water stop putty "Tome Taro" + "Hatsureru" Furukawa Electric Co., Ltd. Underground cable protection pipe "Eflex" This is a cross-sectional view of the three-layer filling at the handhole wall and cable penetration section (Aqua Connector). |
|
News about this product（2）
-
Lightweight! Polyethylene pedestrian passage (pedestrian entrance) is set to be released.
"Lightweight" accelerates "efficiency" on site! Materials that combine high pressure resistance and direct workability with "lightweight." In particular, rigid polyvinyl chloride pipes (PVC) weigh about 53 kg/m, while polyethylene sleeves weigh only about 17 kg/m, showing a significant weight difference! We guarantee a definite improvement in work efficiency at construction sites. Furthermore, it also contributes to reducing the burden on workers and lowering the risk of accidents, enhancing safety!
-
We have started publishing CAD.
We are sequentially publishing various cross-sectional diagrams of Tome TaroⓇ filling, such as Pipe in Sleeve and EP-Sleeve. Please make use of them.
Distributors
A manufacturer specialized in planning, design, and engineering. We focus on product development to solve various issues at construction sites, providing innovative, cutting-edge, and ecological products. Please feel free to contact us.
