Family Restaurant | Case Study of Pressurized Drainage Pump Unit Adoption
We will introduce a case where drainage was pumped using small-diameter piping to fit into a limited space!

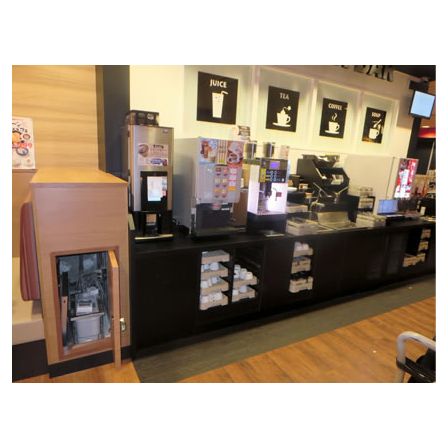

Here is a case study of the adoption of "Zarai NA (ZA-100NA)" in a family restaurant. In this case, as a new (relocation) opening in a tenant building, there was a challenge of wanting to install a drink bar at the center of the store, but there were no existing drainage pipes. The product was chosen because it can provide alarms for water leaks and pump malfunctions, and it can fit within the limited space of the construction. A maintenance door (with a lock) is provided on the front of the pump, making it a design that considers maintenance. [Case Overview (Partial)] ■ Installation Location: Family Restaurant ■ Model: Zarai NA (ZA-100NA) ■ Connected Equipment: Various drainage for the drink bar *For more details, please download the PDF or feel free to contact us.
basic information
【Summary of Other Cases (Partial)】 ■Issues <Requests> - We want to install a drink bar in the center of the store, but there are no existing drainage pipes. - Raising the floor to lay drainage pipes will extend the construction period and increase costs. - We would like to introduce a drainage pump to pressurize drainage through small-diameter piping. ■Proposed Content <Key Points in Design and Construction> - We adopted the "ZA-100NA" because it can provide alarms for water leaks and pump malfunctions, and it can fit within the limited space. - The discharge pipe will rise to the ceiling inside the partition wall at 25A, and natural drainage will be sloped to 50A up to the pipe shaft. *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（3）
Download All Catalogs
Distributors
We sell products that have been processed from the SFA Sanipump series (SFA pumps) manufactured by SFA, with the approval of SFA, primarily for business use to simplify maintenance. We have sold over 4,000 units in total! We also provide model selection, installation advice, and maintenance services.
