[Construction Example] Repair of Stone Walls (Oya Stone) for Small Areas Under 100m2
Repair of the stone wall in public land (changed from mortar spraying) noise control, small area, no need for machinery installation or material storage, lightweight and easy to construct, weed control (mowing).

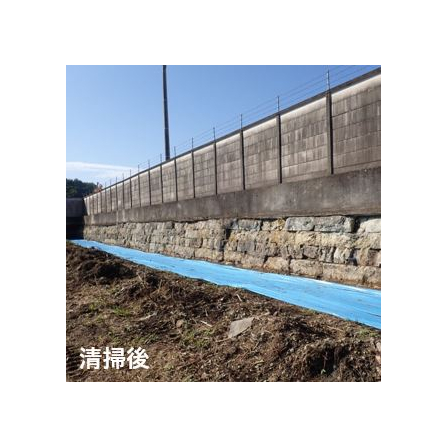

The stone wall made of Ōtani stone has been repaired. Due to the long extension and the small area of less than 100m² for the work, we adopted a hardening textile membrane instead of the initially planned mortar spraying method. Concrete nails were used to secure the sheet. 【Case Overview】 ■ Project Name: Residential Stone Wall Repair Work ■ Location: Tochigi Prefecture ■ Construction Date: August 2023 ■ Quantity: 100m² Nihon Seishokubai is committed to supporting each site, whether it involves rockfall measures from embankments, vegetation mats/sheets, riverbank protection, parks/green spaces, or nature conservation (participation in the 30by30 Alliance). If you have any issues or requests, please feel free to contact us. We offer free site surveys and proposal preparation. *For more details, please refer to the related links or feel free to contact us.
basic information
【Standard Specifications】 ■Product Specifications: Width 1m, Length 5m ■Raw Materials ・Protective Sheet: Polypropylene Polyester ・Curing Layer: Glass Long Fiber Water-Hardening Resin ・Laminated Sheet: Polyethylene ■Color: Deep Green
Price information
For details, please contact us.
Delivery Time
Applications/Examples of results
- Surface protection of vulnerable parts of earth structures: protection of embankments and small steps, protection of road shoulders - Weed control works: base for mortar at waist height and inspection stairs for slopes - Protection of bare land that is difficult to green due to lack of rainfall and sunlight: within forests and under bridge piers, etc. - Protection of difficult greening areas (slopes) with special soils: protection of strongly acidic soils and rock slopes - Simple drainage works and catch basins *Please consult us if used for purposes other than the above.
Detailed information
catalog（2）
Download All Catalogs
CAD data（2）
| Model number | overview | File |
|---|---|---|
| Hardened Tekimen (Embankment) - Standard Construction Drawing |
|
|
| Hardened Tekimen (Cut Soil) - Standard Construction Drawing |
|
